Overview
● 2GE+AC WIFI is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.
●2GE+AC WIFI is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
● 2GE+AC WIFI adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China telecommunications CTC3.0 and GPON Standard of ITU-TG.984.X
● 2GE+AC WIFI with EasyMesh function can easily realize the whole house network.
● 2GE+AC WIFI is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● 2GE+AC WIFI is designed by Realtek chipset 9607C.
Feature
> Supports GPON and EPON auto detection
> Support Rogue ONT detection
> Support Route mode PPPOE/DHCP/Static IP and Bridge mixed mode
> Support NAT, Firewall function.
> Support Internet, IPTV services automatically bound to ONT ports
> Support Virtual server, DMZ, and DDNS, UPNP
> Support Filtering based on MAC/IP/URL
> Support Access Control
> Support 802.11 b/g/n, 802.11ac WIFI(4x4 MIMO) function and Multiple SSID.
> Support Flow & Storm Control , Loop Detection and Port Forwarding.
> Support IPv4/IPv6 dual stack and DS-Lite.
> Support IGMP transparent/snooping/proxy.
> Support TR069 Remote Configuration and maintenance.
> Support EasyMesh function.
> Support PON and routing compatibility function.
> Integrated OAM remote configuration and maintenance function.
> Compatible with popular OLT (HW, ZTE, FiberHome,VSOL...)
Specification
|
Technical Item |
Details |
| PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface |
2 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
| WIFI Interface |
Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 867Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
| LED |
7 LED, For Status of PWR、LOS、PON、LAN1、LAN2、2.4G、5.8G |
| Push-Button |
3 button for Function of Power on/off, Reset, WPS |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
| Power supply |
DC 12V/1A |
| Power Consumption |
<6W |
| Net Weight |
<0.3kg |
Panel lights and Introduction
|
PilotLamp |
Status |
Description |
|
2.4G |
On |
2.4G WIFI up |
|
Blink |
2.4G WIFI is sending or/and receiving data (ACT). |
|
|
Off |
2.4G WIFI down |
|
|
5.8G |
On |
5G WIFI up |
|
Blink |
5G WIFI is sending or/and receiving data (ACT). |
|
|
Off |
5G WIFI down |
|
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN1~LAN2 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
Schematic diagram
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPV, VOD, video surveillance, etc.

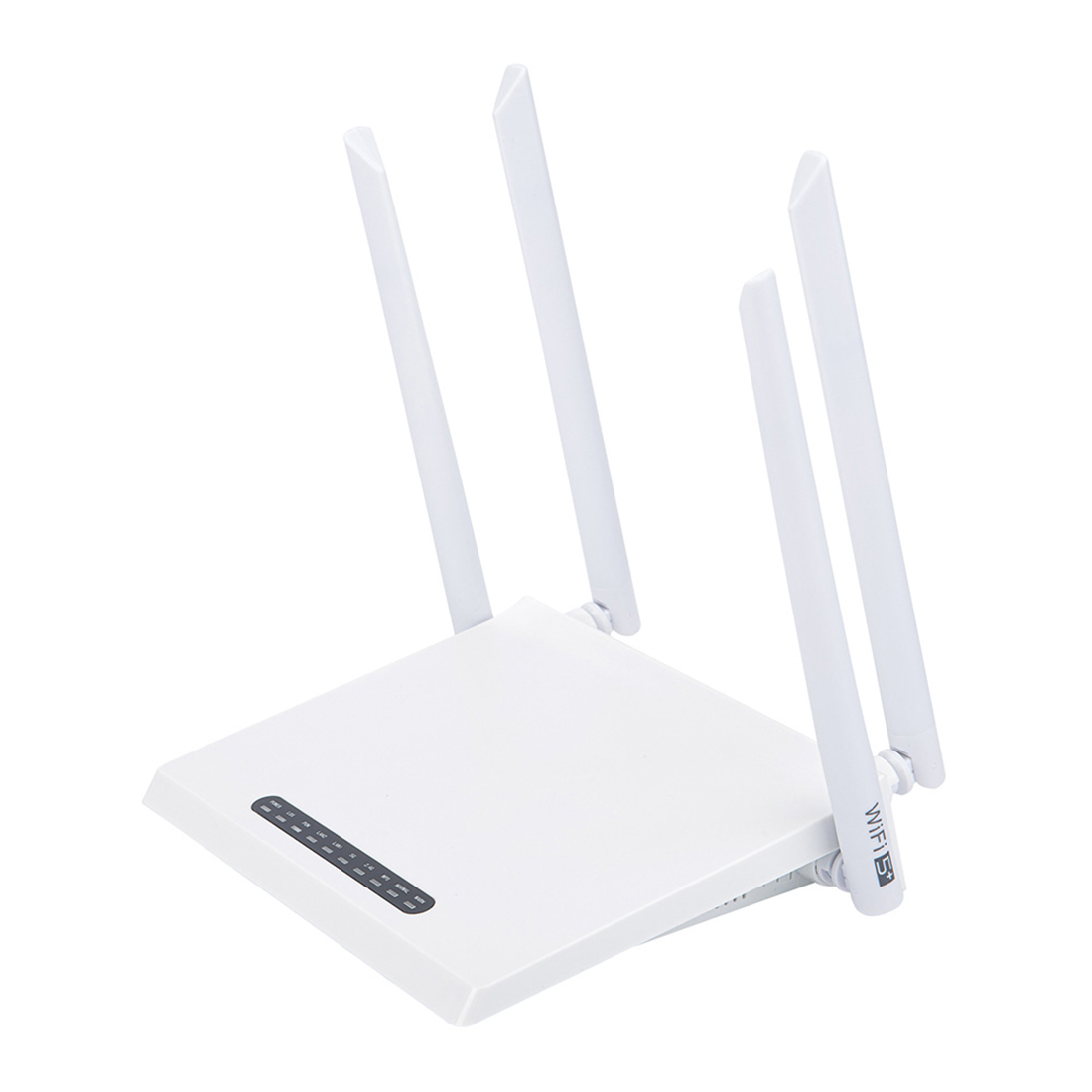

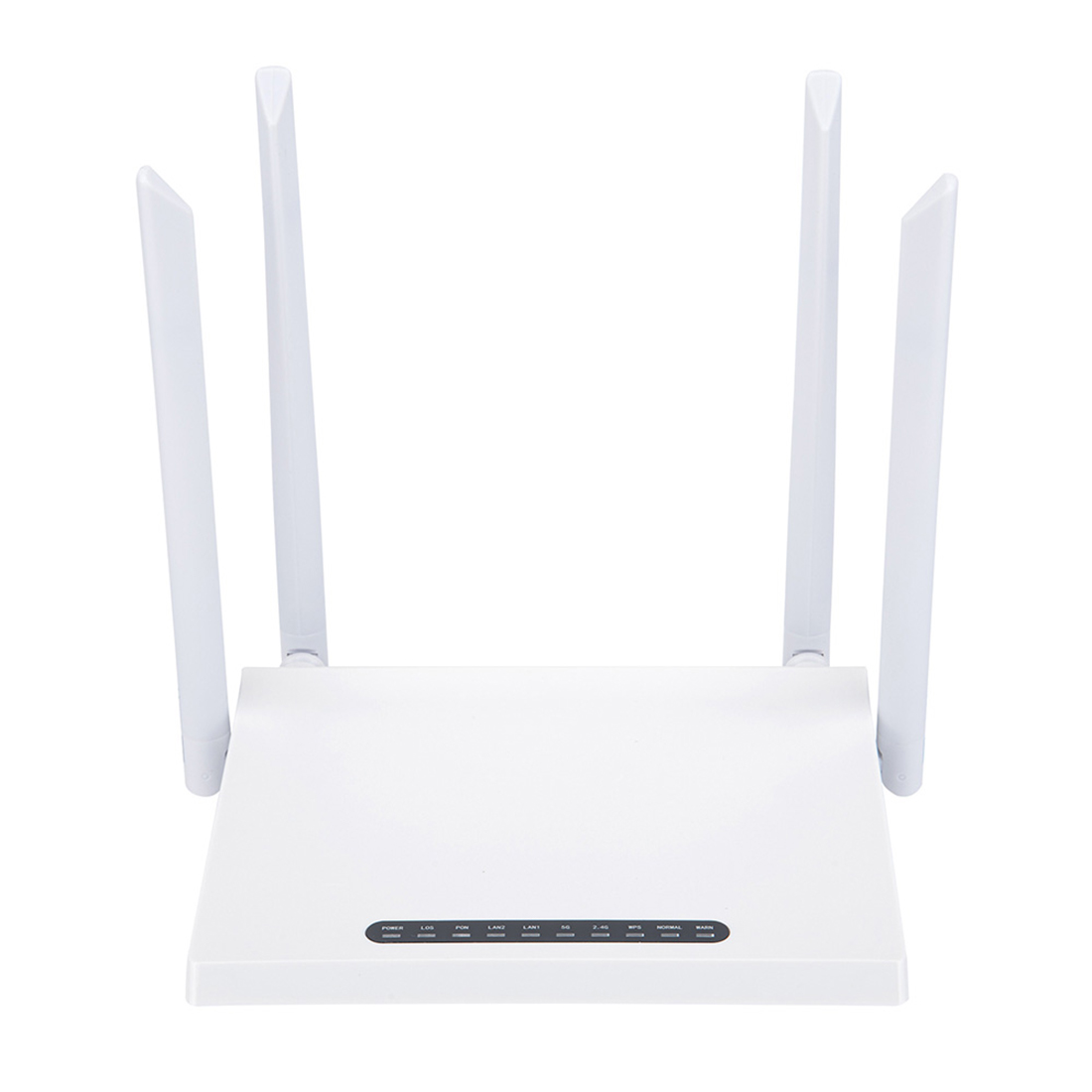

Product Picture
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
XPON 2GE AC WIFI ONU |
CX50020R07C |
2*10/100/1000M, 1 PON interface, support WIFI 5G&2.4G, plastic casing, external power supply adapter |
Wireless LAN
Let's learn how to back up the current settings and restore the settings from the file and reset the current settings to factory settings and reboot!
1、Backup: The operation to backup current settings.
2、Restore Settings from File:The operation allows to restore the settings from the correct saved file.
3、Restore to default: The operation to reset the current settings to factory default.
4、Note: Press RST button over 10 seconds, ONU can restore factory default and reboot
