SFP 10/100/1000M Media Converter

Short Description:

 10/100/1000M adaptive fast Ethernet Optical Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100 Base-TX/ 1000 Base-Fx and 1000Base-FX network segments,meeting long-distance, high-speed and high-broadband fast Ethernet work group users’ needs,achieving high-speed remote interconnection for up to 100 km’s  relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network,such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation,  shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.

Product Detail

Product Tags


● In accordance with Ethernet standards EEE802.3,10/100Base-TX/1000Base-TX and 1000Base-FX.

● Supported Ports: LC for optical fiber; RJ45 for twisted pair.

● Auto-adaptation rate and full/half-duplex mode supported at twisted pairport.

● Auto MDI/MDIX supported without need of cableselection.

● Up to 6 LEDs for status indication of optical power port and UTP port.

● External and built-in DC power supplies provided.

● Up to 1024 MAC addresses supported.

● 512 kb data storage integrated, and 802.1X original MAC address authentication supported.

● Conflicting frames detection in half-duplex and flow control in full duplex supported.

● LFP function can selectable before order.



Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical Media Converter

Number of Network Ports 1 channel
Number of Optical Ports 1 channel
NIC Transmission Rate 10/100/1000Mbit/s
NIC Transmission Mode 10/100/1000M adaptive with support for automatic inversion of MDI/MDIX
Optical Port Transmission Rate 1000Mbit/s
Operating Voltage AC 100-220V or DC +5V
Overall Power <3W
Network Ports RJ45 port
Optical Specifications Optical Port: SC, LC (Optional)

Multi-Mode: 50/125, 62.5/125um

Single-Mode: 8.3/125,8.7/125um, 8/125,10/125um

Wavelength:Single-Mode: 1310/1550nm

Data Channel IEEE802.3x and collision base backpressure supported

Working Mode: Full/half duplex supported

Transmission Rate:1000Mbit/s

with error rate of zero

Operating Voltage AC 100-220V/ DC +5V
Operating Temperature 0℃ to +50℃
Storage Temperature -20℃ to +70℃
Humidity 5% to 90%


Instructions on Media Converter Panel

Identification of Media Converter

TX - transmitting terminal

RX - receiving terminal


Power Indicator Light – “ON” means normal operation of DC 5V power supply adaptor

1000M Indicator Light

“ON” means the rate of the electric port is  1000 Mbps, while “OFF” means the rate is 100 Mbps.


“ON” means connectivity of the optical channel; “FLASH” means data transfer in the channel;

“OFF” means non-connectivity of the optical channel.


“ON” means connectivity of the electric circuit; “FLASH” means data transfer in the circuit; “OFF” means non-connectivity of the electric circuit.

SD Indicator Light

“ON” means input of optical signal; “OFF” means non input.


“ON” means full duplex electric port; “OFF” means half-duplex electric port.


Non-shielded twisted pair port


☯ For intranet prepared for expansion from 100M to 1000M.

☯ For integrated data network for multimedia such as image, voice and etc.

☯ For point-to-point computer data transmission

☯ For computer data transmission network in a wide range of business application

☯ For broadband campus network, cable TV and intelligent FTTB/FTTH data tape

☯ In combination with switchboard or other computer  network facilitates for: chain-type, star-type and ring-type network and other computer networks.

Media converter application scenario diagram

Product Appearance

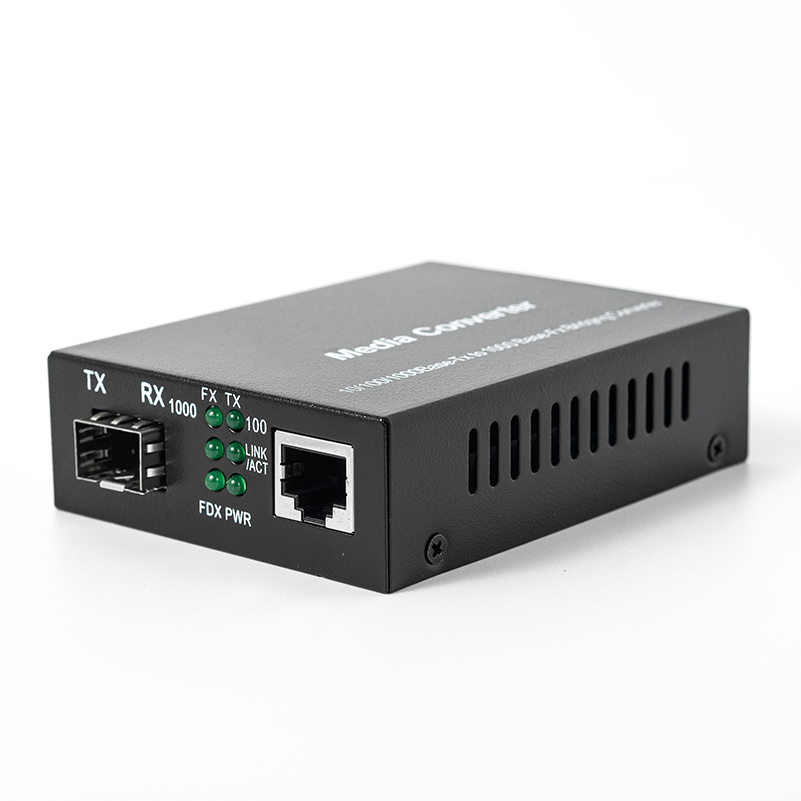

SFP 10&100&1000M Media Converter(1)

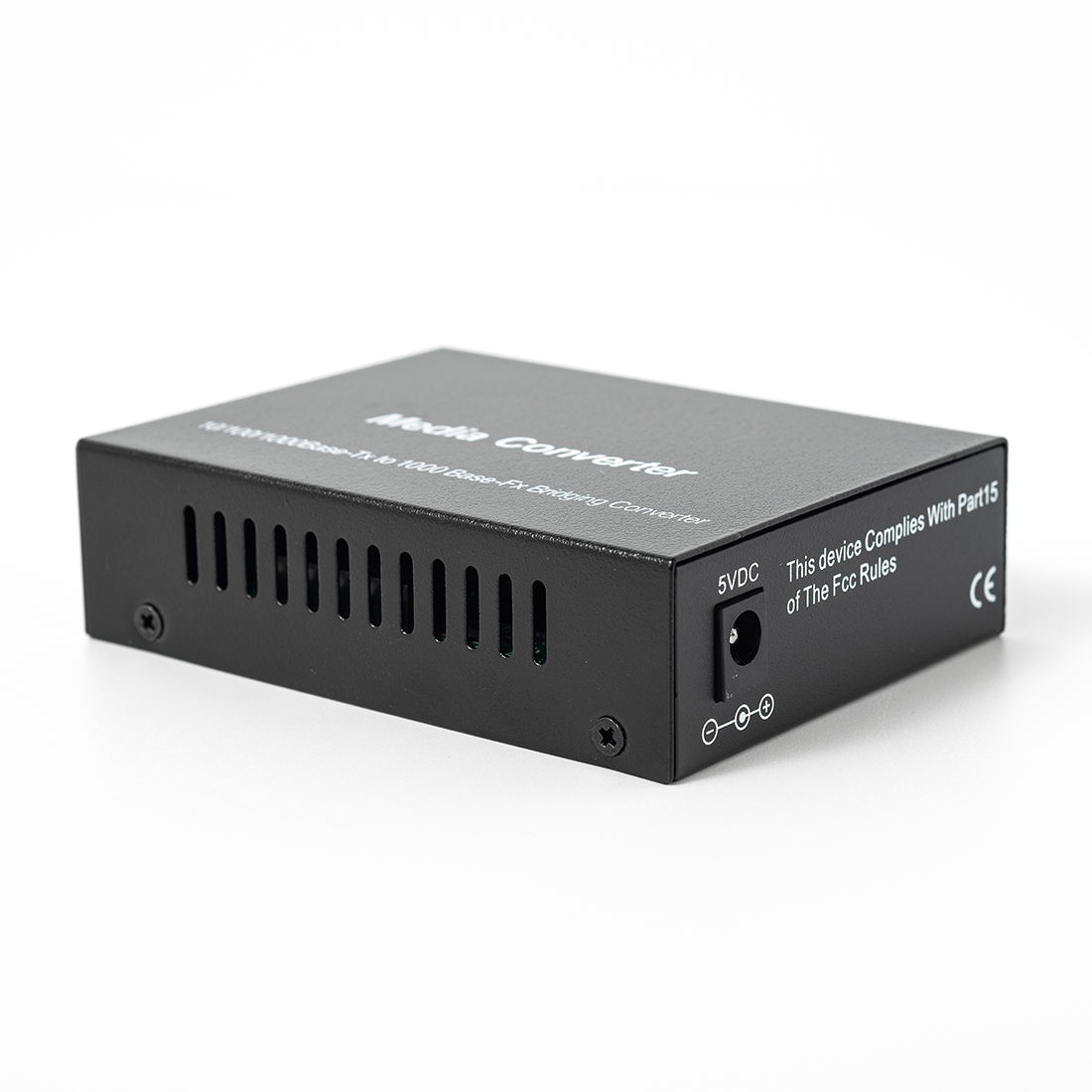

SFP 10&100&1000M Media Converter(3)

Regular Power Adapter
