    Overview

      4G+WIFI+CATV+2POTS+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.

      4G+WIFI+CATV+2POTS+2USB is based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.

      4G+WIFI+CATV+2POTS+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 3000Mbps.

      4G+WIFI+CATV+2POTS+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

      4G+WIFI+CATV+2POTS+2USB are designed by ZTE chipset ZX279128S.

    Product Feature and model list

    ONU Model CX62242Z28S CX61242Z28S CX62142Z28S CX61142Z28S

    Feature

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 2CATV

    4ae38081b769ce65dfc69838b7c168a 2VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 1CATV

    4ae38081b769ce65dfc69838b7c168a 2VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 2CATV

    4ae38081b769ce65dfc69838b7c168a 1VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 1CATV

    4ae38081b769ce65dfc69838b7c168a 1VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    ONU Model CX62042Z28S CX61042Z28S CX60242Z28S  CX60142Z28S

    Feature

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 2CATV

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 1CATV

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 2VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 1VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    ONU Model CX60042Z28S
      4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB



    Feature

    >  Supports Dual Mode (can access GPON/EPON OLT).

    >  Comply with GPON G.984/G.988 standard and IEEE802.3ah.

    >  Support CATV interface for Video Service and remote control by Major OLT

    > Support 802.11 b/g/n/ac/ax, 802.11ac WIFI6(4x4 MIMO) function and Multiple SSID

    > Support NAT, Firewall function.

    > Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect

    > Support port mode of VLAN configuration

    > Support LAN IP and DHCP Server configuration

    > Support TR069 Remote Configuration and WEB Management

    > Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode

    > Support IPv4/IPv6 dual stack

    > Support IGMP transparent/snooping/proxy

    > Support  ACL and SNMP to configure data packet filter flexibly

    > Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...)

    Specification



    Technical Item

    Details

    PON interface

    1 G/EPON port(EPON PX20+ and GPON Class B+)

    Upstream: 1310nm; Downstream: 1490nm

    single mode,SC/APC connector

    Receiving sensitivity: ≤-28dBm

    Transmitting optical power: 0~+4dBm

    Overload optical power: -3dBm(EPON) or - 8dBm(GPON)

    Transmission distance: 20KM

    LAN interface

    4 x 10/100/1000Mbps auto adaptive Ethernet interfaces

    Full/Half, RJ45 connector

    USB Interface

    Stamdard USB2.0、Stamdard USB3.0

    WIFI Interface

    Compliant with IEEE802.11b/g/n/ac/ax

    2.4GHz Operating frequency: 2.400-2.483GHz

    5.0GHz Operating frequency: 5.150-5.825GHz

    Support 4*4MIMO, 5dBi external antenna, rate up to 3000Mbps

    Support: multiple SSID

    TX power: 11n--22dBm/11ac--24dBm

    CATV Interface

    1xRF, optical power : +2~-15dBm

    Optical reflection loss: ≥45dB

    Optical receiving wavelength: 1550±10nm

    RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

    RF output level: ≥ 80dBuV(-7dBm optical input)

    AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

    MER: ≥32dB(-14dBm optical input), >35(-10dBm)

    POTS Port

    2×POTS RJ11 Connector

    LED

    16LED,:PWR、LOS\PON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、 FXS1/FXS2、Normal 1(CATV1)/Normal

    Push-Button

    3, for Function of Power on/off, Reset, WPS

    Operating condition

    Temperature : 0℃~+50℃

    Humidity :10%~90%(non-condensing)

    Storing Condition

    Temperature : -40℃~+60℃

    Humidity :10%~90%(non-condensing)

    Power supply

    DC 12V/1.5A

    Power Consumption

    <18W

    Net Weight

    <0.4kg





    Panel lights and Introduction

    Pilot  Lamp

    Status

    Description

    WIFI

    On

    The WIFI interface is up.

    Blink

    The WIFI interface is sending or/and receiving data (ACT).

    Off

    The WIFI interface is down.

    WPS

    Blink

    The WIFI interface is securely establishing a connection.

    Off The WIFI interface does not establish a secure connection.

    PWR

    On The device is powered up.
    Off The device is powered down.

    LOS

    Blink The device doses not receive optical signals or with low signals.
    Off The device has received optical signal.

    PON

    On The device has registered to the PON system.
    Blink The device is registering the PON system.
    Off The device registration is incorrect.

    LAN1~LAN4

    On Port (LANx) is connected properly (LINK).
    Blink Port (LANx) is sending or/and receiving data (ACT).
    Off Port (LANx) connection exception or not connected.

    FXS

    On Telephone has registered to the SIP Server.
    Blink Telephone has registered and data transmission (ACT).
    Off Telephone registration is incorrect.

    Normal

    (CATV)

    On Input optical power is between -15dBm and 2dBm
    Off Input optical power is higher than 2dBm or lower than -15dBm

    Application

    ● Typical Solution:FTTO(Office)、 FTTB(Building)、FTTH(Home)

    ● Typical Service:Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP

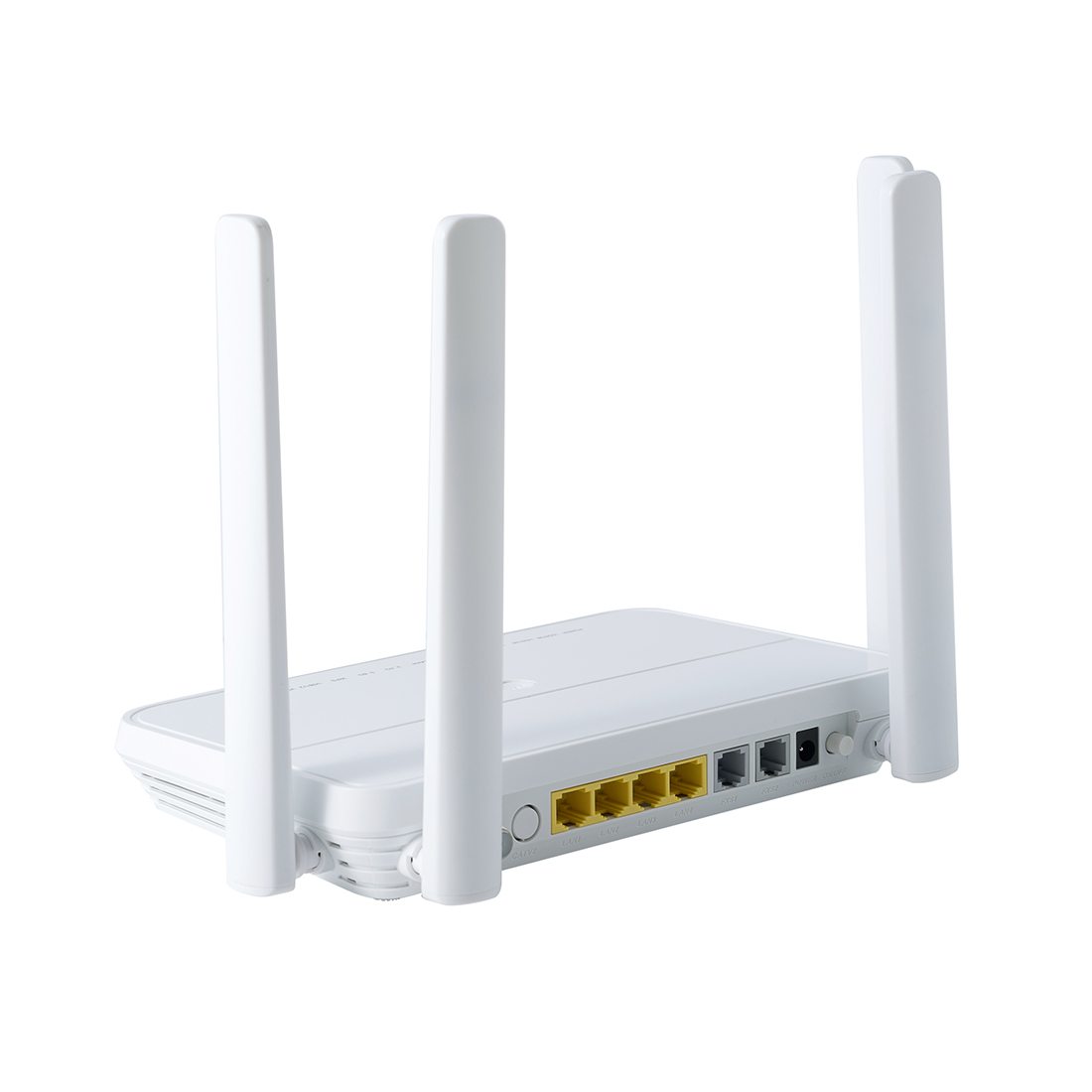

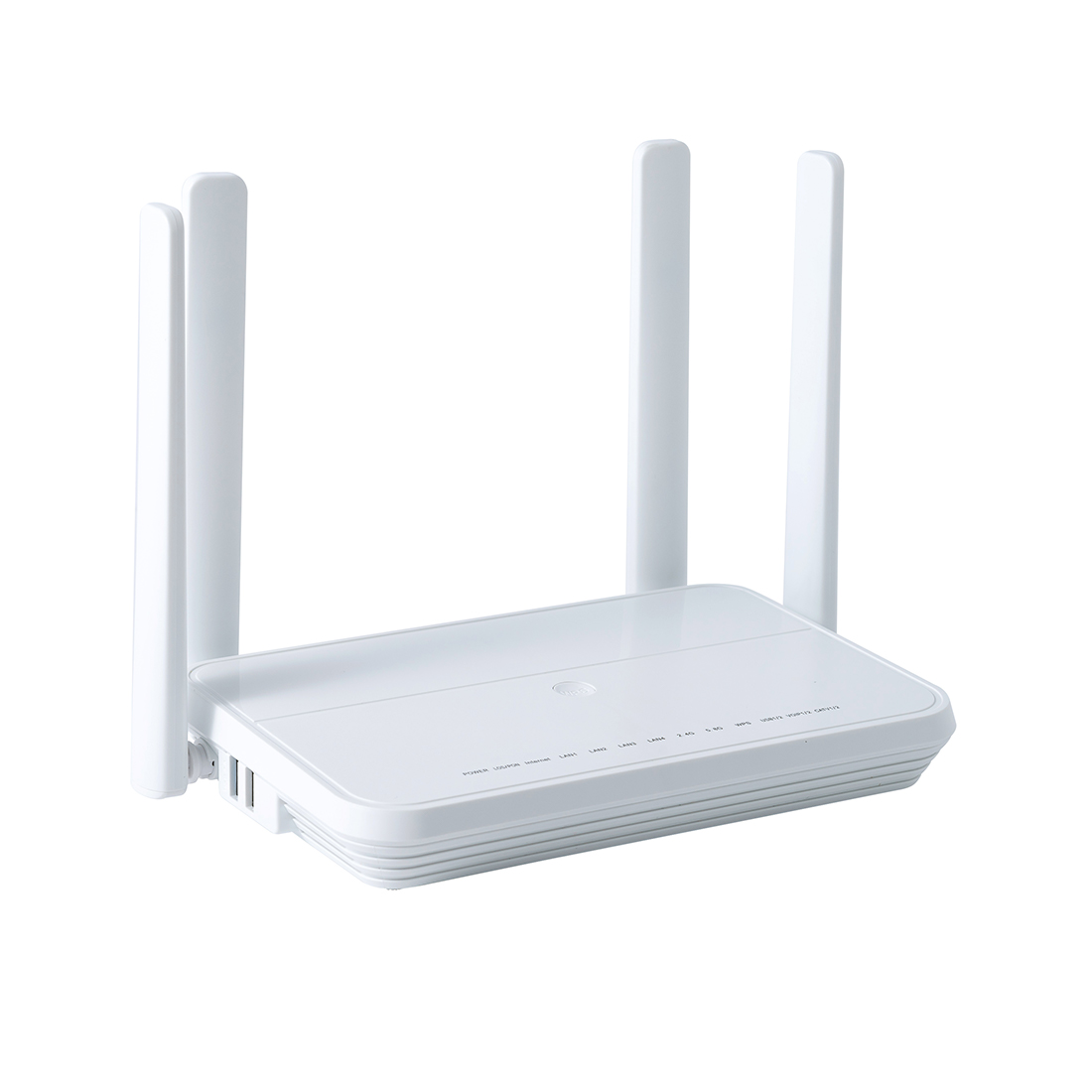

    Product Appearance

    Ordering Lnformation

    Product Name

    Product Model

    Descriptions

     AX3000 WIFI6 4GE+WIFI+1CATV+2POTs+2USB ONU

    CX61242Z28S

    4*10/100/1000MNetwork port ;1CATV ports;2 POTS ports;2 USB ports;external power supply adapter



    Regular Power Adapter

    可选常规电源适配器配图
