Overview
● 4G+WIFI+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
● 4G+WIFI+2USB is based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.
● 4G+WIFI+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 1500Mbps.
● 4G+WIFI+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 4G+WIFI+2USB with EasyMesh function can easily realize the whole house network.
● 4G+WIFI+2USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● 4G+WIFI+2USB are designed by Realtek chipset 9607C.
Product Feature and model list
ONU Model |
CX62242R07S |
CX61242R07S |
CX62142R07S |
CX61142R07S |
Feature |
4G 2CATV 2VOIP WIFI6 2USB |
4G 1CATV 2VOIP WIFI6 2USB |
4G 2CATV 1VOIP WIFI6 2USB |
4G 1CATV 1VOIP WIFI6 2USB |
ONU Model |
CX62042R07S |
CX61042R07S |
CX60242R07S |
CX60142R07S |
Feature |
4G 2CATV WIFI6 2USB |
4G 1CATV WIFI6 2USB |
4G 2VOIP WIFI6 2USB |
4G 1VOIP WIFI6 2USB |
ONU Model |
CX60042R07S |
|
|
|
Feature |
4G WIFI6 2USB |
|
|
Feature
> Comply with GPON G.984/G.988 standard and IEEE802.3ah.
> Support 802.11 b/g/a/n/ac/ax, 802.11ax WIFI6(4x4MIMO) function and Multiple SSID
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
> Support power-off alarm function ,easy for link problem detection.
> Support port mode of VLAN configuration.
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and WEB Management.
> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMP transparent/snooping/proxy.
> Support EasyMesh function.
> Support PON and routing compatibility function.
> Support ACL and SNMP to configure data packet filter flexibly.
> Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)
> Supports OAM/OMCI management.
Specification
Technical Item |
Details |
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm single mode,SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
LAN interface |
4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
USB Interface |
Stamdard USB2.0、Stamdard USB3.0 |
WIFI Interface |
Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 1500Mbps Support: multiple SSID |
|
|
LED |
13 LED,:PWR、LOS\PON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、 |
Push-Button |
3, for Function of Power on/off, Reset, WPS |
Operating condition |
Temperature : 0℃~+50℃ Humidity :10%~90%(non-condensing) |
Storing Condition |
Temperature : -40℃~+60℃ Humidity :10%~90%(non-condensing) |
Power supply |
DC 12V/1.5A |
Power Consumption |
<18W |
Net Weight |
<0.4kg |
Panel lights and Introduction
Pilot Lamp |
Status |
Description |
WIFI |
On |
The WIFI interface is up. |
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
Off |
The WIFI interface is down. |
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
Off |
The WIFI interface does not establish a secure connection. | |
INTERNET |
On |
The light is on when the device business configuration is normal. |
Off |
The light does not light up when the device service configuration is blocked. | |
PWR |
On |
The device is powered up. |
Off |
The device is powered down. | |
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
Off |
The device has received optical signal. | |
PON |
On |
The device has registered to the PON system. |
Blink |
The device is registering the PON system. | |
Off |
The device registration is incorrect. | |
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
Blink |
Port (LANx) is sending or/and receiving data (ACT). | |
Off |
Port (LANx) connection exception or not connected. | |
USB |
On |
USB device communication detected |
Off |
No USB device detected or communicating |
Application
● Typical Solution:FTTO(Office)、 FTTB(Building)、FTTH(Home).
● Typical Service:Broadband Internet access, IPTV, VOD, video surveillance etc.

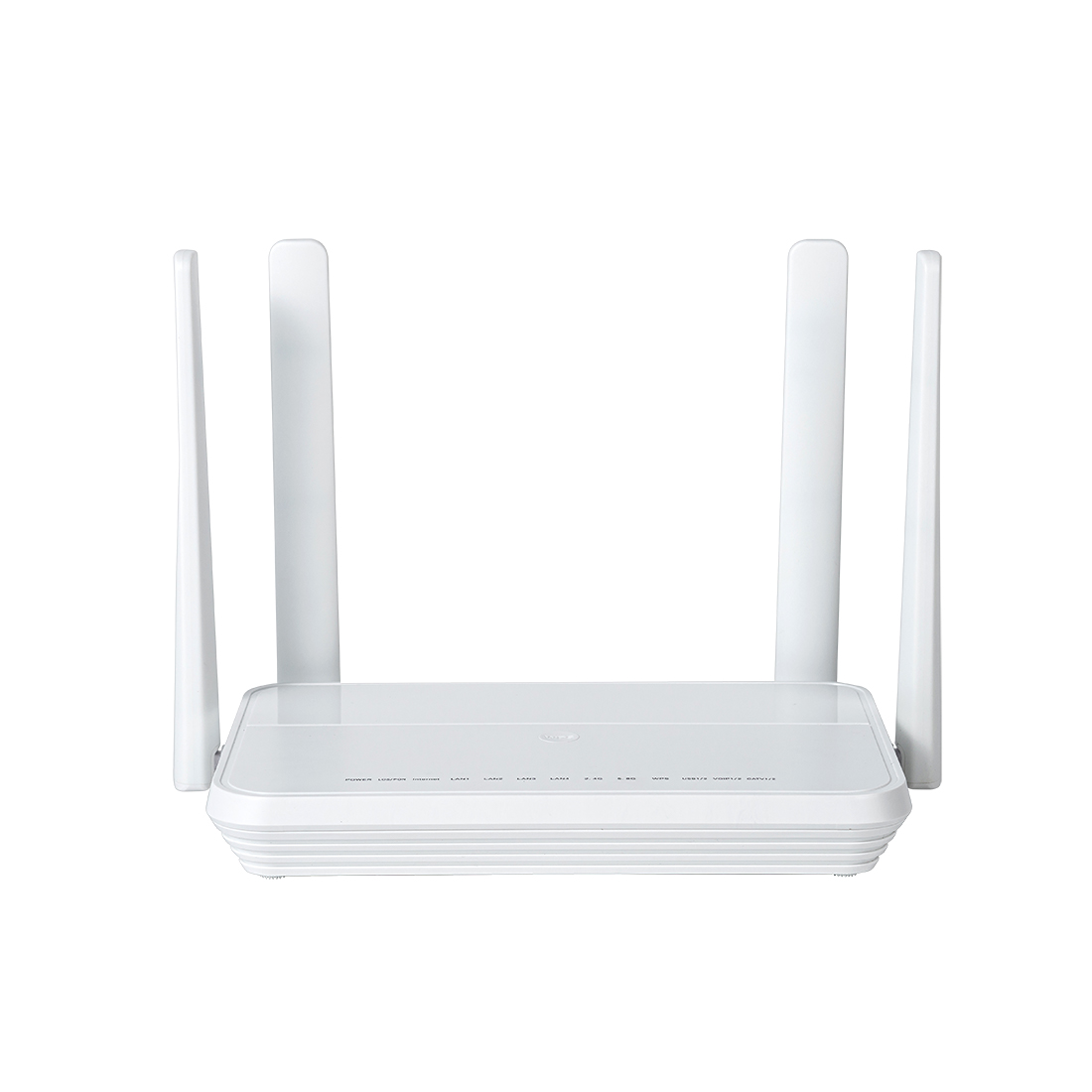

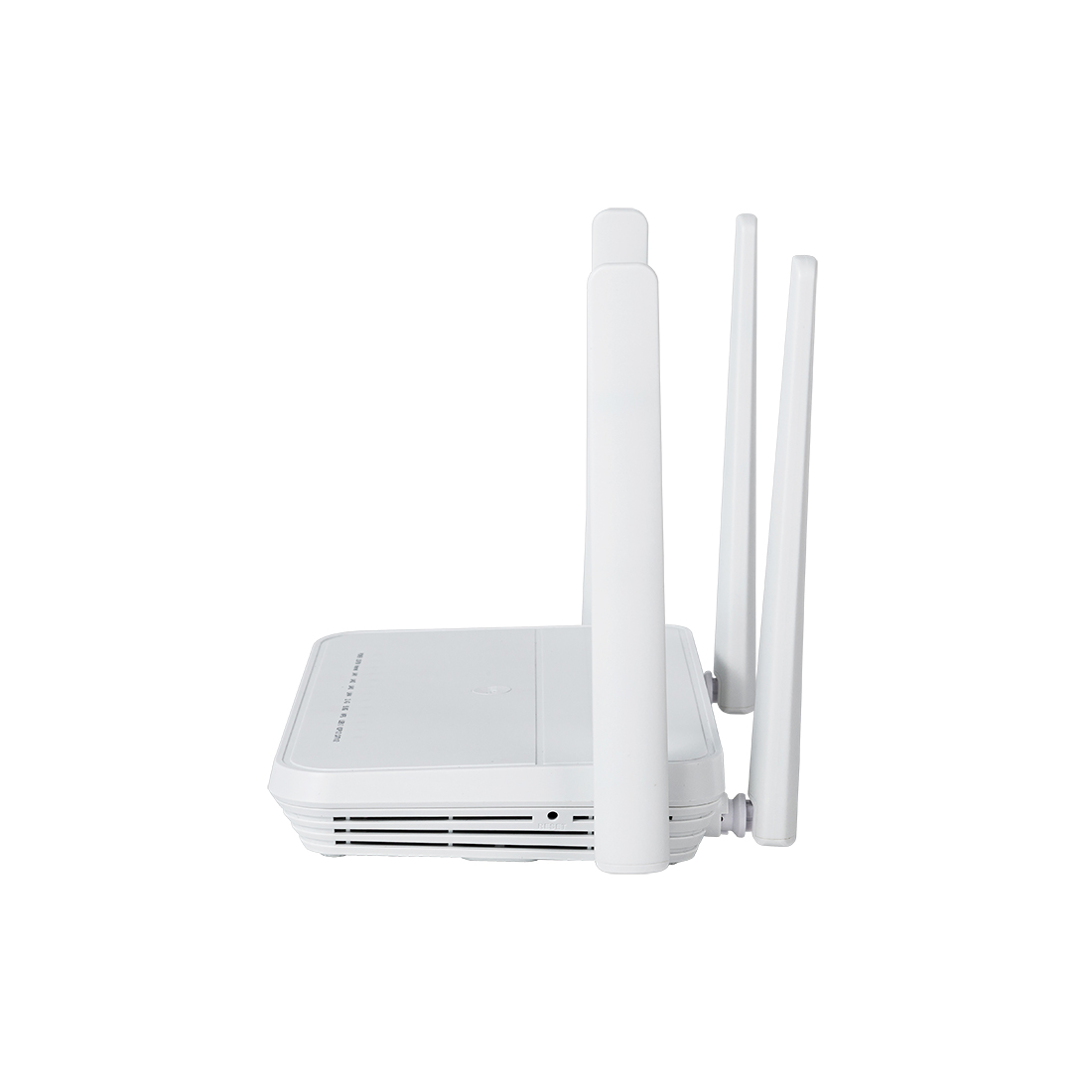

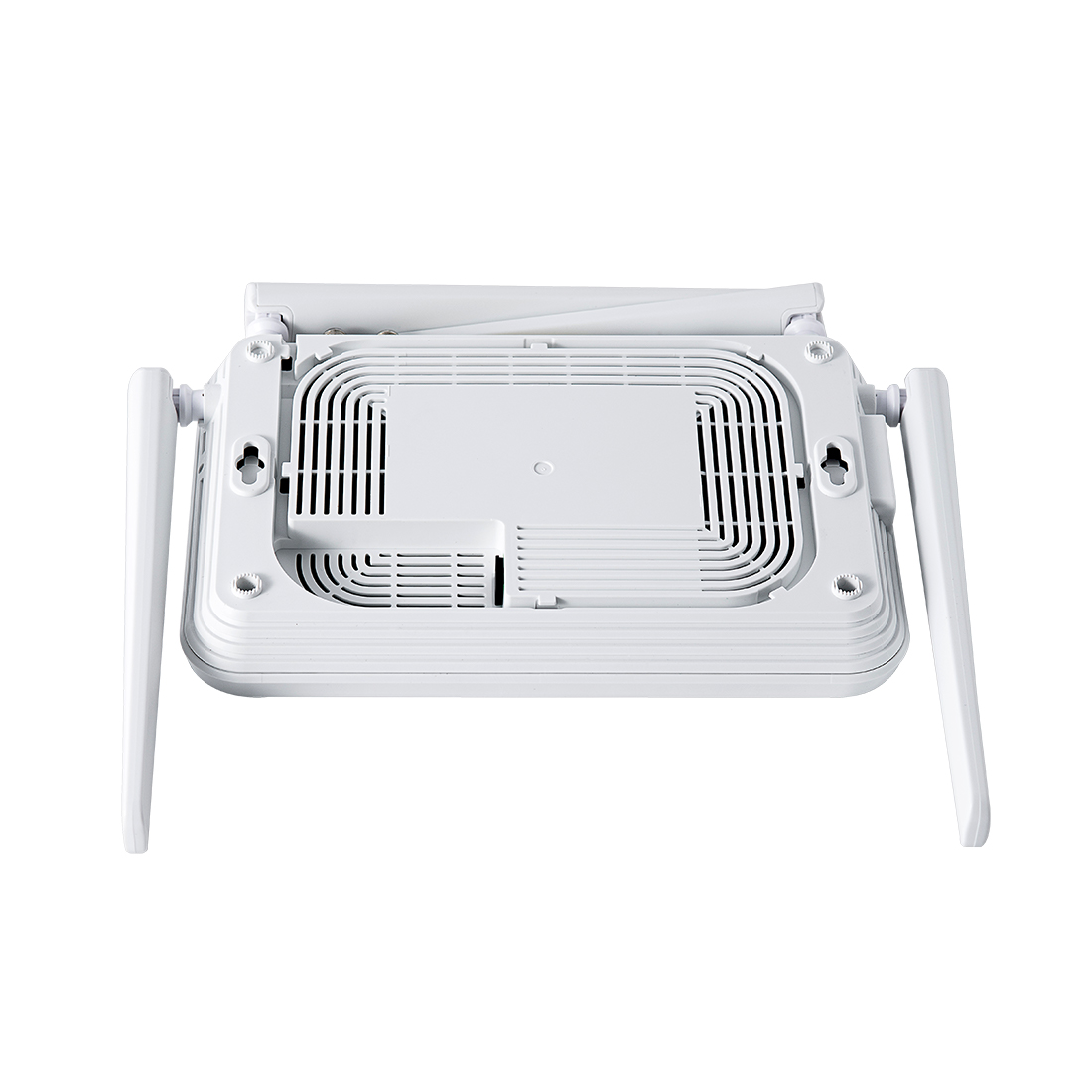

Product Appearance
Ordering Information
Product Name |
Product Model |
Descriptions |
AX1500 WIFI6 4GE+WIFI+2USB ONU |
CX60042R07S |
4*10/100/1000MNetwork port ;2 USB ports;external power supply adapter |
