10Gbps Multi-Mode 850nm 300m Muplex LC DDM SFP+ Module Supplier Manufacturer

Short Description:

◉ Up to 11.3Gbps data rate

◉ 850nm VCSEL Laser Transmitter

◉ Duplex LC receptacle optical interface compliant

◉ Single +3.3V power supply

◉ DDMI function available with internally calibrated mode

◉ Hot-pluggable

◉ Receiver loss of signal output

◉ Transmitter disable input

◉ International Class1 laser safety certified

◉ Operating temperature range:

◉ Commercial: -5°C~70°C

◉ RoHS Compliant






  • Product Model: CT-L0896-02DC
  • Product Detail

    Product Tags

    Standard

    ◉ Compliant with SFP+ MSA

    ◉ Compliant with SFF-8472

    ◉ Compliant with IEEE802.3ae

    ◉ 10GFC

    Technical Indicators

    Absolute Maximum Ratings

    Parameter

    Symbol

    Min

    Max

    Unit

    Storage temperature

    TS

    -40

    85

    °C

    Power Supply Voltage

    Vcc

    0

    3.6

    V

    Relative Humidity

    RH

    5

    95

    %

    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Notes

    Operating Case Temperature

    TC

    -5



    70

    °C

    CT-L0896-02DC

    Power Supply Voltage

    Vcc

    3.13

    3.3

    3.47

    V



    Data Rate



    1

    10.3125

    11.3

    Gbps



    Fiber Length 50/125μm core MMF

    (2000MHz-km)









    300



    m



    Electrical Characteristics

    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Notes

    Total Supply Current

    Icc





    300

    mA



    Transmitter

    Transmitter Differential Input Voltage



    180



    1200

    mV



    Tx_Fault Output Voltage - High

    VOH

    2.4



    Vcc

    V

    LVTTL

    Tx_Fault Output Voltage - Low

    VOL

    0



    0.4

    V

    LVTTL

    Tx_Disable Input Voltage - High

    VIH

    2



    Vcc

    V

    LVTTL

    Tx_Disable Input Voltage - Low

    VIL

    0



    0.8

    V

    LVTTL

    Input Differential Impedance



    90

    100

    110

    Ω



    Receiver

    Receiver Differential Output Voltage



    300



    850

    mV



    Electrical Characteristics

    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Notes

    LOS Output Voltage - High

    VOH

    2.4



    Vcc

    V

    LVTTL

    LOS Output Voltage - Low

    VOL

    0



    0.4

    V

    LVTTL

    Output Differential Impedance



    90

    100

    110

    Ω



    Optical Transmitter Characteristics

    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Notes

    Average Output Power

    POUT

    -6



    - 1

    dBm



    Center Wavelength

    λC

    830

    850

    870

    nm



    Spectral Width

    Δλ





    0.45

    nm



    Extinction Ratio

    ER

    3.5





    dB



    Relative Intensity Noise

    RIN





    - 128

    dB/Hz



    Optical Rise/Fall Time

    TR/T F

    28



    50

    ps



    Transmitter and Dispersion Penalty

    TDP





    3.2

    dB



    Transmitter OFF Power

    POFF





    -45

    dBm



    Output Eye Diagram

    Complies with IEEE802.3ae

    Optical Receiver Characteristics

    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Notes

    Center Wavelength

    λC

    830

    850

    870

    nm



    Receiver Sensitivity

    PSEN





    - 10

    dBm

    1

    Input Saturation Power (Overload)

    PSAT

    0.5





    dBm



    LOS De-assert Level

    LOSD





    - 13

    dBm



    LOS Assert Level

    LOSA

    -30





    dBm



    LOS hysteresis

    HYS

    0.5



    6

    dB



    Pin Definition

    10Gbps 1310nm 20km D uplex LC DDM SFP+ Module CT-L1396-20D

    Pin No

    Symbol

    Name/Description

    Power

    Seq.

    Notes

    1

    VeeT

    Transmitter Ground (Common with Receiver Ground)

    1st

    1

    2

    TX_Fault

    Transmitter Fault, Low: normal; High: abnormal

    3rd

    2



    3



    TX_Disable

    Transmitter Disable

    High: Transmitter off

    Low: Transmitter on



    3rd



    3

    4

    SDA

    2-Wire Serial Interface Data Line

    (Same as MOD-DEF2 in INF-8074i)

    3rd

    4

    5

    SCL

    2-Wire Serial Interface Clock Line

    (Same as MOD-DEF2 in INF-8074i)

    3rd

    4

    6

    Mod_ABS

    Module Absent, Connect to VeeT or VeeR in Module

    3rd

    5

    7

    RS0

    Rate Select 0, optionally controls SFP+ module receiver. NC

    3rd

    6



    8



    RX_LOS

    Receiver Loss of Signal indication

    High: loss of signal

    Low: signal detected



    3rd



    7

    9

    RS1

    Rate Select 1, optionally controls SFP+ module

    3rd

    8





    transmitter. NC





    10

    VeeR

    Receiver Ground

    1st

    1

    11

    VeeR

    Receiver Ground

    1st

    1

    12

    RD-

    Receiver Inverted DATA out. AC Coupled. CML-O

    3rd



    13

    RD+

    Receiver Non-inverted DATA out. AC Coupled. CML-O

    3rd



    14

    VeeR

    Receiver Ground

    1st

    1

    15

    VccR

    Receiver Power Supply

    2nd



    16

    VccT

    Transmitter Power Supply

    2nd



    17

    VeeT

    Transmitter Ground

    1st

    1

    18

    TD+

    Transmitter Non-Inverted DATA in. AC Coupled. CML-I

    3rd



    19

    TD-

    Transmitter Inverted DATA in. AC Coupled. CML-I

    3rd



    20

    VeeT

    Transmitter Ground

    1st

    1

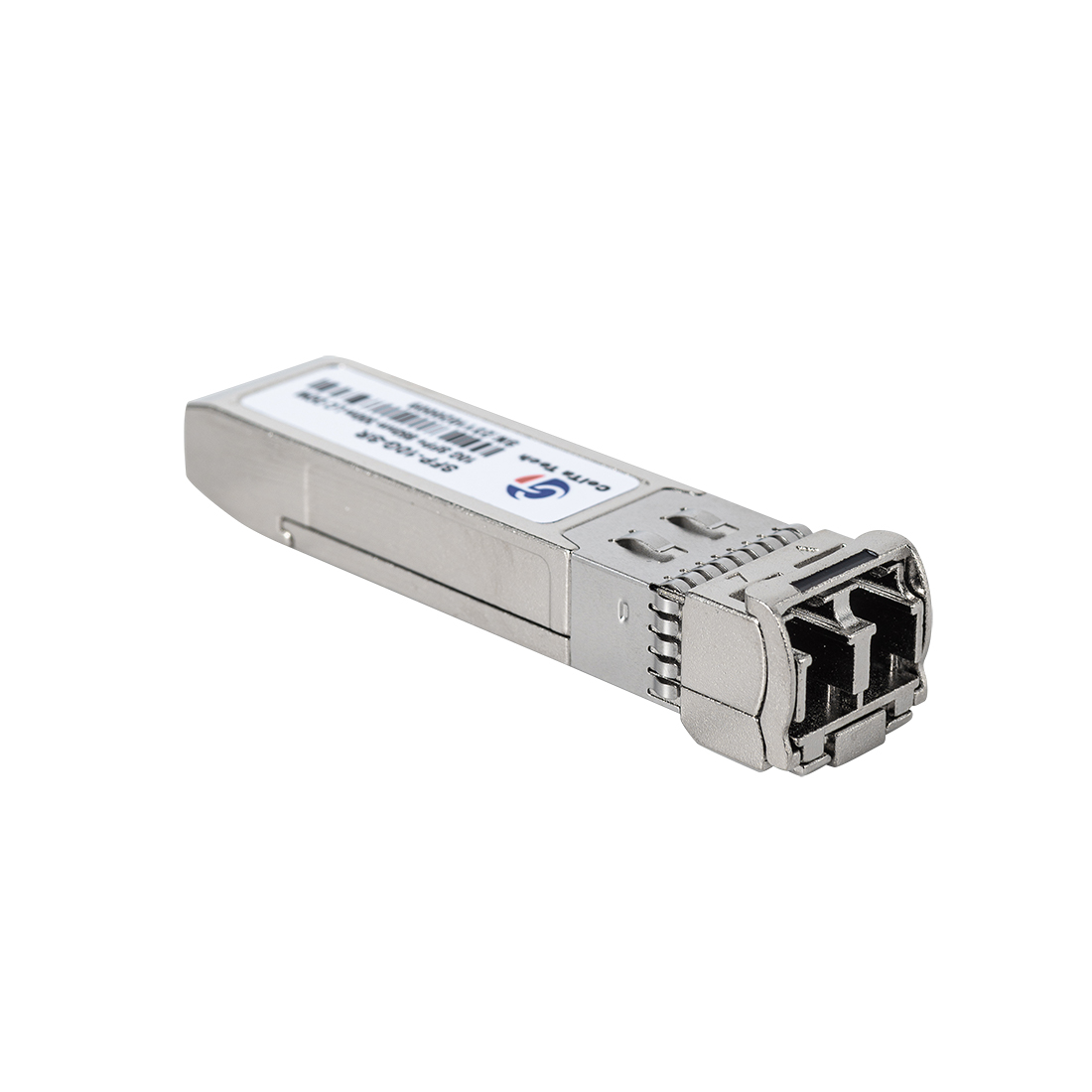

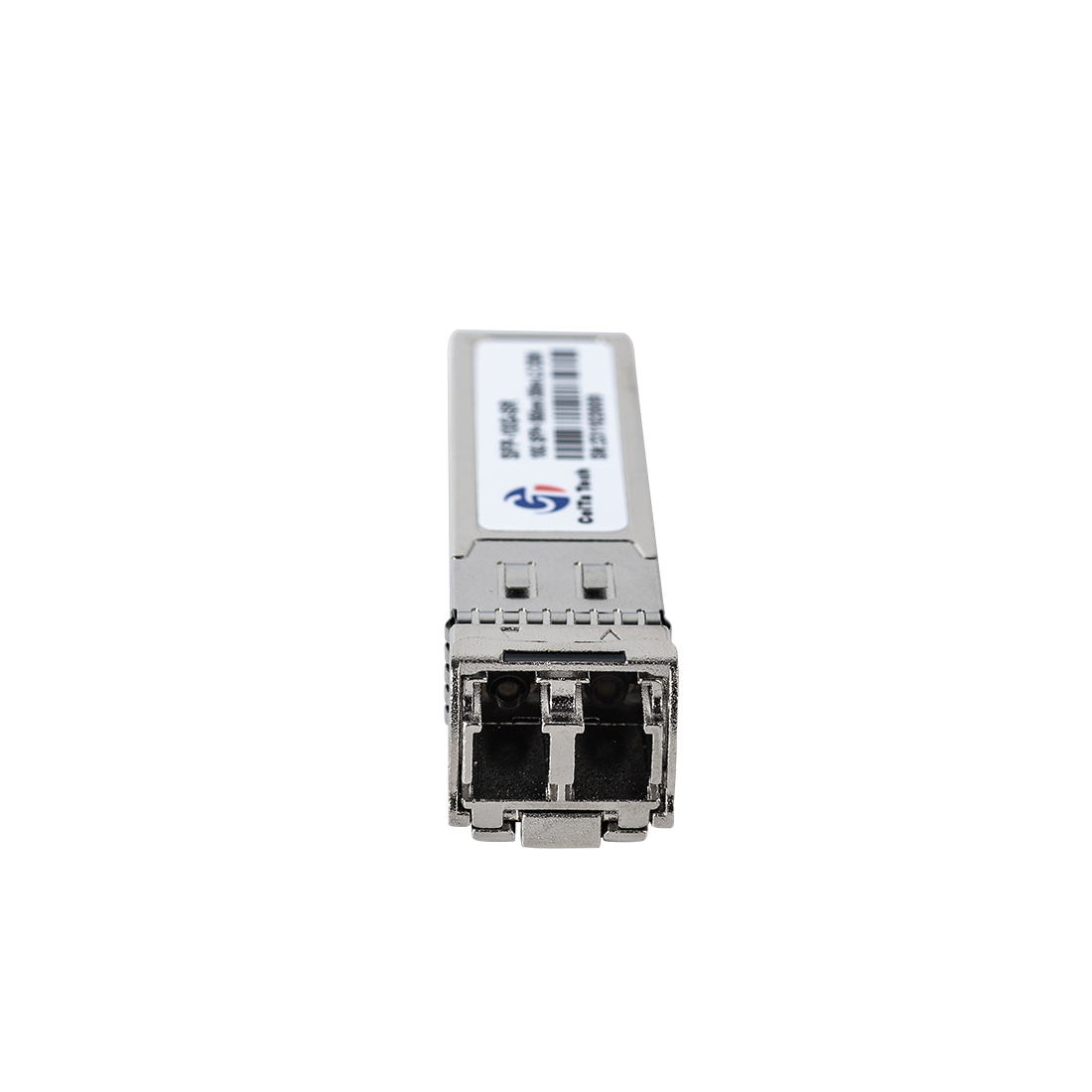

    Product Picture

    10Gbps Multi-Mode 850nm 300m duplex LC DDM SFP+ Module CT-0896-02DC(4)
    10Gbps Multi-Mode 850nm 300m duplex LC DDM SFP+ Module CT-0896-02DC(5)
