XPON 1G1F WIFI CATV POTs ONU
Overview
●1G1F+WIFI+CATV is designed as HGU (Home Gateway Unit) in transfer data FTTH solutions; the carrier-class FTTH application provides data service access.
● 1G1F+WIFI+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
● 1G1F+WIFI+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunications EPON CTC3.0.
● 1G1F+WIFI+CATV is compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
● 1G1F+WIFI+CATV is full compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
● 1G1F+WIFI+CATV is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.
● 1G1F+WIFI+CATV is designed by Realtek chipset 9602C.
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards
> Support CATV interface for Video Service and remote control by Major OLT
> Support 802.11n WIFI (2x2 MIMO) function
> Support NAT, Firewall function.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
> Support port mode of VLAN configuration
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and maintenance.
> Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMP transparent/snooping/proxy.
> Support PON and routing compatibility function.
> In compliant with IEEE802.3ah standard.
> Compatible with popular OLT (HW, ZTE, FiberHome,VSOL...)
Specification
|
Technical Item |
Details |
| PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface |
1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
| CATV Interface |
RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
| LED |
10 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、 WORN、NORMAL(CATV), FXS |
| Push-Button |
4, for Function of Power on/off, Reset, WPS, WIFI |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
| Power supply |
DC 12V/1A |
| Power Consumption |
<6W |
| Net Weight |
<0.4kg |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. |
|
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN1~LAN2 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
|
|
FXS |
On |
Telephone has registered to the SIP Server. |
|
Blink |
Telephone has registered and data transmission (ACT). |
|
|
Off |
Telephone registration is incorrect. |
|
|
WORN (CATV) |
On |
Input optical power is higher than 2dBm or lower than -15dBm |
|
Off |
Input optical power is between -15dBm and 2dBm |
|
|
Normal (CATV) |
On |
Input optical power is between -15dBm and 2dBm |
|
Off |
Input optical power is higher than 2dBm or lower than -15dBm |
Schematic diagram
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD(video on demand), video surveillance, etc.

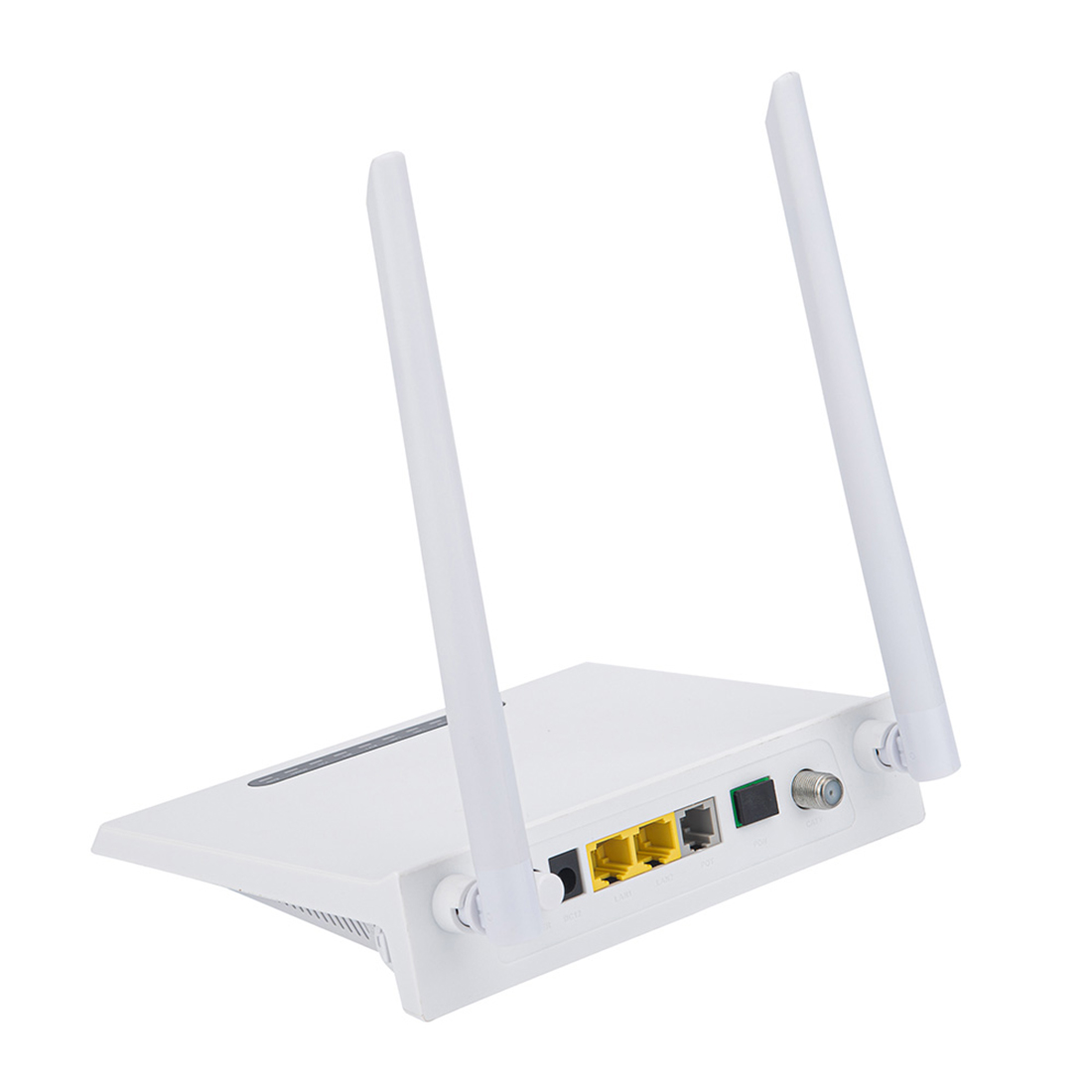

Product Picture
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
XPON 1G1F WIFI CATV POTs ONU |
CX21120R02C |
1*10/100/1000M and 1*10/100M Ethernet interface, 1 PON interface, 1 POTS interface, 1 RF interface, built-in FWDM, support Wi-Fi function, Plastic casing, external power supply adapter |
login web page
Follow me to understand how our web page is logged in!
1.The IP address of the PC should be set within the following range: 192.168.1, our sub-net mask is 255.255.255.0 .
2. You need to open an Internet browser on a computer or wireless device connected to the Internet.
3. Enter the URL http://192.168.1.1, you can find the IP address of the device on the device label.
4. Enter the username and password, the username is "admin" and the default password is "admin". The username and password are case-sensitive. The preset username and password can be found on the device label.
FAQ
Q1. Can XPON ONU be freely set as HGU or SFU in different FTTH solutions?
A: Yes, XPON ONU can be freely set as HGU (Home Gateway Unit) or SFU (Single Family Unit) in different FTTH solutions.
Q2. What are the characteristics of XPON ONU?
Answer: XPON ONU is equipped with 1Gigabit 1FE 1VOIP 1CATV, combining VoIP function, network communication function and cable TV function. It also includes AGC (Automatic Gain Control) for better user experience.
Q3. Does XPON ONU support network digital convergence?
A: Yes, XPON ONU is designed to support digital convergence of networks and is the ideal product for this purpose.
Q4. Can XPON ONU automatically switch between EPON OLT and GPON OLT?
A: Yes, XPON ONU is able to automatically switch between EPON OLT (Optical Line Terminal) and GPON OLT, providing flexibility for different network configurations.
Q5. Can XPON ONU realize remote fault diagnosis and location?
Answer: Yes, XPON ONU can issue commands through OMCI (ONU Management and Control Interface) for remote fault diagnosis and location. The OLT compatible with this function includes SMATR OLT and UP2000.
