WIFI6 AX1500 4GE WIFI CATV 2USB ONU ONT Manufacturer

Short Description:

WIFI6 AX1500 4GE+WIFI+CATV+2USB device supports dual mode, can access GPON and EPON OLT, has strong compatibility and flexibility. It also supports CATV interface to provide users with video services and can be remotely controlled through mainstream OLT. It also has excellent performance in wireless networks, supporting multiple standards such as 802.11 b/g/a/n/ac/ax, especially supporting WIFI6 (4x4MIMO) function and having multiple SSIDs to meet diverse wireless access needs. In terms of management and configuration, the device supports TR069 remote configuration and WEB management, making it convenient for users to perform remote operation and maintenance. At the same time, it also supports multiple routing modes, including PPPoE, IPoE, DHCP and static IP, as well as bridge hybrid mode, providing users with more choices…


  • Single Size: mm
  • Carton Size: mm
  • Product Model: CX61042R07S
  • Product Detail

    Product Tags

    Overview

    ● 4G+WIFI+CATV+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.

    ● 4G+WIFI+CATV+2USB is based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI       management.

    ● 4G+WIFI+CATV+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 1500Mbps.

    ● 4G+WIFI+CATV+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

    ● 4G+WIFI+CATV+2USB with EasyMesh function can easily realize the whole house network.

    ● 4G+WIFI+CATV+2USB is compatible with PON and routing. In routing mode, LAN1 is the WAN uplink interface.

    ● 4G+WIFI+CATV+2USB are designed by Realtek chipset 9607C.



    Product Feature and model list

    ONU Model

    CX62242R07S

    CX61242R07S

    CX62142R07S

    CX61142R07S



    Feature

                   4G

                 2CATV

                 2VOIP

                 WIFI6

                  2USB

                    4G

                 1CATV

                 2VOIP

                 WIFI6

                  2USB

                    4G

                  2CATV

                  1VOIP

                  WIFI6

                   2USB

                   4G

                1CATV

                1VOIP

                WIFI6

                 2USB

    ONU Model

    CX62042R07S

    CX61042R07S

    CX60242R07S

         CX60142R07S



    Feature

                     4G

                  2CATV

                  WIFI6

                   2USB

                     4G

                  1CATV

                  WIFI6

                   2USB

                      4G

                   2VOIP

                   WIFI6

                   2USB

                  4G

                1VOIP

                WIFI6

                 2USB

    ONU Model

    CX60042R07S









    Feature

                     4G

                  WIFI6

                   2USB







    Feature

    XPON 4GE+AX1500 +CATV +2USB ONU CX61042R07S  (1)

    > Comply with GPON G.984/G.988 standard and IEEE802.3ah.

    > Support CATV interface for Video Service and remote control by Major OLT.

    > Support 802.11 b/g/a/n/ac/ax, 802.11ax WIFI6(4x4MIMO) function and Multiple SSID

    > Support NAT, Firewall function.

    > Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.

    > Support power-off alarm function ,easy for link problem detection.

    > Support port mode of VLAN configuration.

    Support LAN IP and DHCP Server configuration.

    Support TR069 Remote Configuration and WEB Management.

    Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.

    Support IPv4/IPv6 dual stack.

    Support IGMP transparent/snooping/proxy.

    > Support EasyMesh function.

    > Support PON and routing compatibility function.

    Support ACL and SNMP to configure data packet filter flexibly.

    Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)

    SupportsOAM/OMCI management.

    XPON 4GE+AX1500 +CATV +2USB ONU CX61042R07S (2)

    Specification

    Technical Item

    Details

    PON interface

    1 G/EPON port(EPON PX20+ and GPON Class B+)

    Upstream: 1310nm; Downstream: 1490nm

    single mode,SC/APC connector

    Receiving sensitivity: ≤-28dBm

    Transmitting optical power: 0~+4dBm

    Overload optical power: -3dBm(EPON) or - 8dBm(GPON)

    Transmission distance: 20KM

    LAN interface

    4 x 10/100/1000Mbps auto adaptive Ethernet interfaces

    Full/Half, RJ45 connector

    USB Interface

    Stamdard USB2.0、Stamdard USB3.0

    WIFI Interface

    Compliant with IEEE802.11b/g/n/ac/ax

    2.4GHz Operating frequency: 2.400-2.483GHz

    5.0GHz Operating frequency: 5.150-5.825GHz

    Support 4*4MIMO, 5dBi external antenna, rate up to 1500Mbps

    Support: multiple SSID

    CATV Interface

    1xRF, optical power : +2~-15dBm

    Optical reflection loss: ≥45dB

    Optical receiving wavelength: 1550±10nm

    RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

    RF output level: ≥ 80dBuV(-7dBm optical input)

    AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

    MER: ≥32dB(-14dBm optical input), >35(-10dBm)

    LED

    14 LED,:PWR、LOS\PON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、Normal 1

    (CATV1)

    Push-Button

    3, for Function of Power on/off, Reset, WPS

    Operating condition

    Temperature : 0℃~+50℃

    Humidity :10%~90%(non-condensing)

    Storing Condition

    Temperature : -40℃~+60℃

    Humidity :10%~90%(non-condensing)

    Power supply

    DC 12V/1.5A

    Power Consumption

    <18W

    Net Weight

    <0.4kg



    Panel lights and Introduction

    Pilot  Lamp

    Status

    Description

    WIFI





    On

    The WIFI interface is up.

    Blink

    The WIFI interface is sending or/and receiving data (ACT).

    Off

    The WIFI interface is down.

    WPS



    Blink

    The WIFI interface is securely establishing a connection.

    Off The WIFI interface does not establish a secure connection.

    INTERNET



    On The light is on when the device business configuration is normal.
    Off The light does not light up when the device service configuration is blocked.

    PWR



    On The device is powered up.
    Off The device is powered down.

    LOS



    Blink The device doses not receive optical signals or with low signals.
    Off The device has received optical signal.

    PON





    On The device has registered to the PON system.
    Blink The device is registering the PON system.
    Off The device registration is incorrect.

    LAN1~LAN4





    On Port (LANx) is connected properly (LINK).
    Blink Port (LANx) is sending or/and receiving data (ACT).
    Off Port (LANx) connection exception or not connected.

    USB



    On USB device communication detected
    Off No USB device detected or communicating

    Normal

    (CATV)



    On Input optical power is between -15dBm and 2dBm
    Off Input optical power is higher than 2dBm or lower than -15dBm

    Application

    ● Typical Solution:FTTO(Office)、 FTTB(Building)、FTTH(Home).

    ● Typical Service:Broadband Internet access, IPTV, VOD, video surveillance, CATV etc.





    29cb811dcecc1282b3259c20e3ca8dc

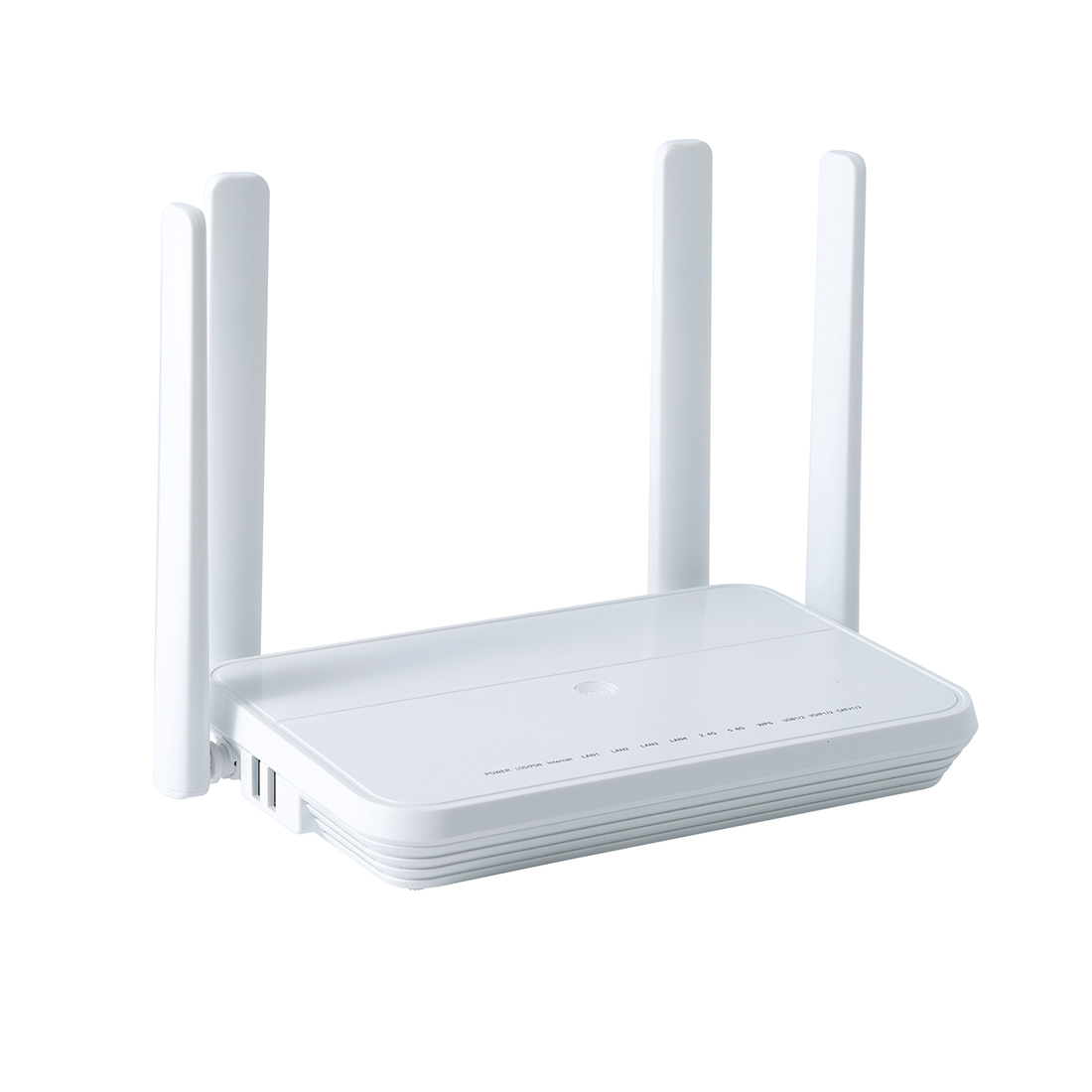

    Product Appearance

    XPON 4GE+AX1500 +CATV +2USB ONU CX61042R07S (2)
    XPON 4GE+AX1500 +CATV +2USB ONU CX61042R07S (5)

    Ordering Information

    Product Name

    Product Model

    Descriptions

     AX1500 WIFI6 4GE+WIFI+CATV+2USB ONU

    CX61042R07S

    4*10/100/1000MNetwork port ;1CATV ports, 2 USB ports;external power supply adapter

    Regular Power Adapter

    可选常规电源适配器配图
