XGPON AX3000 2.5G 4GE WIFI 2CATV POTs 2USB ONU Manufacturer

Short Description:

 XGPON ONU CG62152R17C 10M/100M/1000M*4 and 1 2.5Gbps network port, supports 1FE/1GE/2.5G network port adaptation; the dual-band WIFI2.4G rate can reach 574Mbps, and the WIFI5.8G rate can reach 2402Mbps. WIFI encryption: WEP-64/WEP-128/WPA/WPA2/WPA3. Can automatically switch between EPON OLT and GPON OLT. Dual CATV function, supports XGPON environment. Supports VOIP services of SIP protocol and complies with GR-909 comprehensive line test.1 standard USB2.0, 1USB3.0 interface. Support IPTV, IGMP, Telnet, HTTP, HTTPS protocols…

  • Single Size: mm
  • Carton Size: mm
  • Product Model: CG62152R17C
  • Product Detail

    Product Tags


    ● XGPON 2.5G+4G+WIFI+2CATV+POTs+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.

    ● XGPON 2.5G+4G+WIFI+2CATV+POTs+2USB is based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.

    ● XGPON  2.5G+4G+WIFI+2CATV+POTs+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax  WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 3000Mbps.

    ● XGPON  2.5G+4G+WIFI+2CATV+POTs+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

    ● XGPON 2.5G+4G+WIFI+2CATV+POTs+2USB are designed by Realtek chipset 9617C.

    Product Feature and model list

    ONU Model

























    ONU Model


















    XGPON_ AX3000 2.5G+4GE+WIFI+2CATV+POTS+2USB ONU  CG62152R17C (1)

    > Supports Dual Mode (can access GPON/EPON OLT).

    >  Comply with GPON G.987/G.9807.1 and IEEE 802.3av standards

    > Support CATV interface for Video Service and remote control by Major OLT

    > Support SIP Protocol for VoIP Service

    > Integrated line testing compliant with GR-909 on POTS

    > Support 802.11 b/g/a/n/ac/ax, 802.11ax WIFI6(4x4MIMO) function and Multiple SSID

    > Support NAT, Firewall function.

    > Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect

    > Support power-off alarm function ,easy for link problem detection

    > Support port mode of VLAN configuration

    > Support LAN IP and DHCP Server configuration

    > Support TR069 Remote Configuration and WEB Management

    > Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode

    > Support IPv4/IPv6 dual stack

    > Support IGMP transparent/snooping/proxy

    > Support ACL and SNMP to configure data packet filter flexibly

    > Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...),supports OAM/OMCI management.

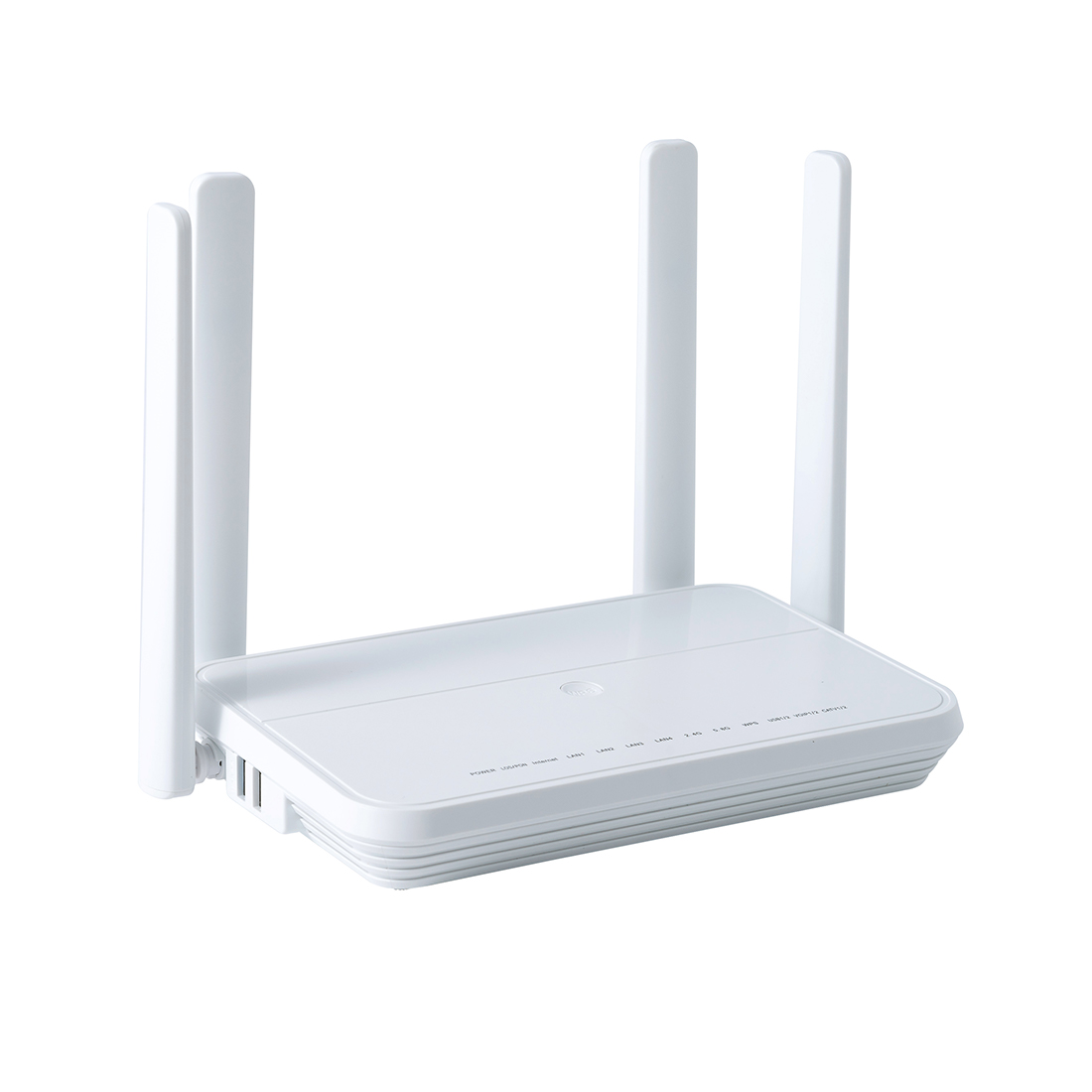

    XGPON_ AX3000 2.5G+4GE+WIFI+2CATV+POTS+2USB ONU CG62152R17C (3)


    Technical Item


    PON interface

    1 0G GPON Class B+)

    Upstream: 1270nm; Downstream: 1577nm

    single mode,SC/APC connector

    Receiving sensitivity: ≤-29dBm

    Transmitting optical power: 2~+8dBm

    Overload optical power:  - 8dBm(GPON)

    Transmission distance: 20KM

    LAN interface

    1x10/100/1000M/2500Mbps auto adaptive Ethernet interfaces Full/Half,

    4 x 10/100/1000Mbps auto adaptive Ethernet interfaces

    Full/Half, RJ45 connector

    USB Interface

    Stamdard USB2.0、Stamdard USB3.0

    WIFI Interface

    Compliant with IEEE802.11b/g/n/ac/ax

    2.4GHz Operating frequency: 2.400-2.483GHz

    5.0GHz Operating frequency: 5.150-5.825GHz

    Support 4*4MIMO, 5dBi external antenna, rate up to 3000Mbps

    Support: multiple SSID

    CATV Interface

    2xRF, optical power : +2~-15dBm

    Optical reflection loss: ≥45dB

    Optical receiving wavelength: 1550±10nm

    RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

    RF output level: ≥ 80dBuV(-7dBm optical input)

    AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

    MER: ≥32dB(-14dBm optical input), >35(-10dBm)

    VOIP Port

    1×VOIP RJ11 Connector


    17 LED,:PWR、LOS\PON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、 FXS1/2.5GLAN、Normal 1(CATV1)/Normal  2(CATV2)


    3, for Function of Power on/off, Reset, WPS

    Operating condition

    Temperature : 0℃~+50℃

    Humidity :10%~90%(non-condensing)

    Storing Condition

    Temperature : -40℃~+60℃

    Humidity :10%~90%(non-condensing)

    Power supply

    DC 12V/1.5A

    Power Consumption


    Net Weight


    Panel lights and Introduction

    Pilot  Lamp

    Status Description





    The WIFI interface is up.


    The WIFI interface is sending or/and receiving data (ACT).


    The WIFI interface is down.




    The WIFI interface is securely establishing a connection.

    Off The WIFI interface does not establish a secure connection.



    On The light is on when the device business configuration is normal.
    Off The light does not light up when the device service configuration is blocked.



    On The device is powered up.
    Off The device is powered down.



    Blink The device doses not receive optical signals or with low signals.
    Off The device has received optical signal.



    On The device has registered to the PON system.
    Blink The device is registering the PON system.
    Off The device registration is incorrect.




    On Port (LANx) is connected properly (LINK).
    Blink Port (LANx) is sending or/and receiving data (ACT).
    Off Port (LANx) connection exception or not connected.




    On Telephone has registered to the SIP Server.
    Blink Telephone has registered and data transmission (ACT).
    Off Telephone registration is incorrect.



    On USB device communication detected
    Off No USB device detected or communicating




    On Input optical power is between -15dBm and 2dBm
    Off Input optical power is higher than 2dBm or lower than -15dBm


    ● Typical Solution:FTTO(Office)、 FTTB(Building)、FTTH(Home)

    ● Typical Service:Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP etc.

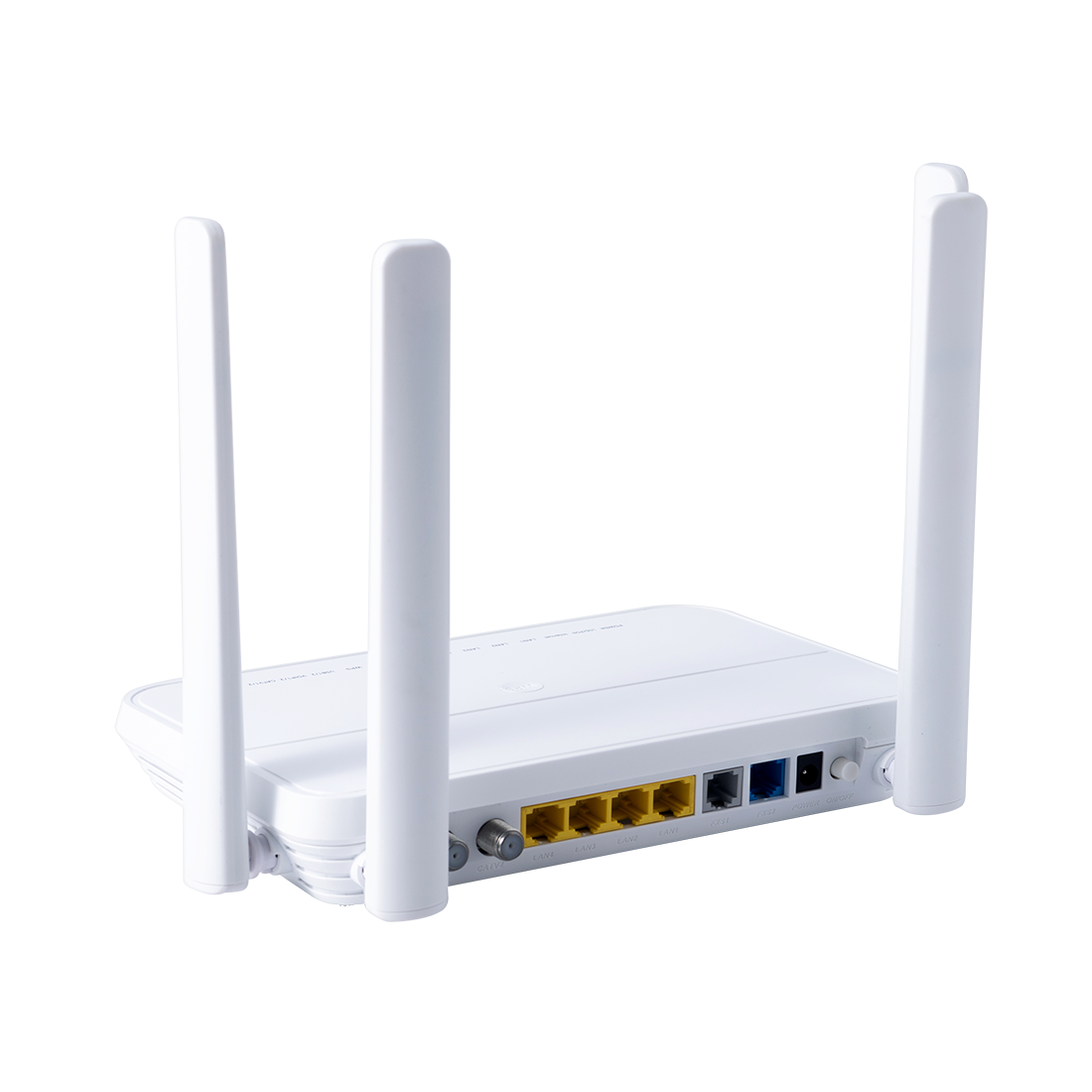

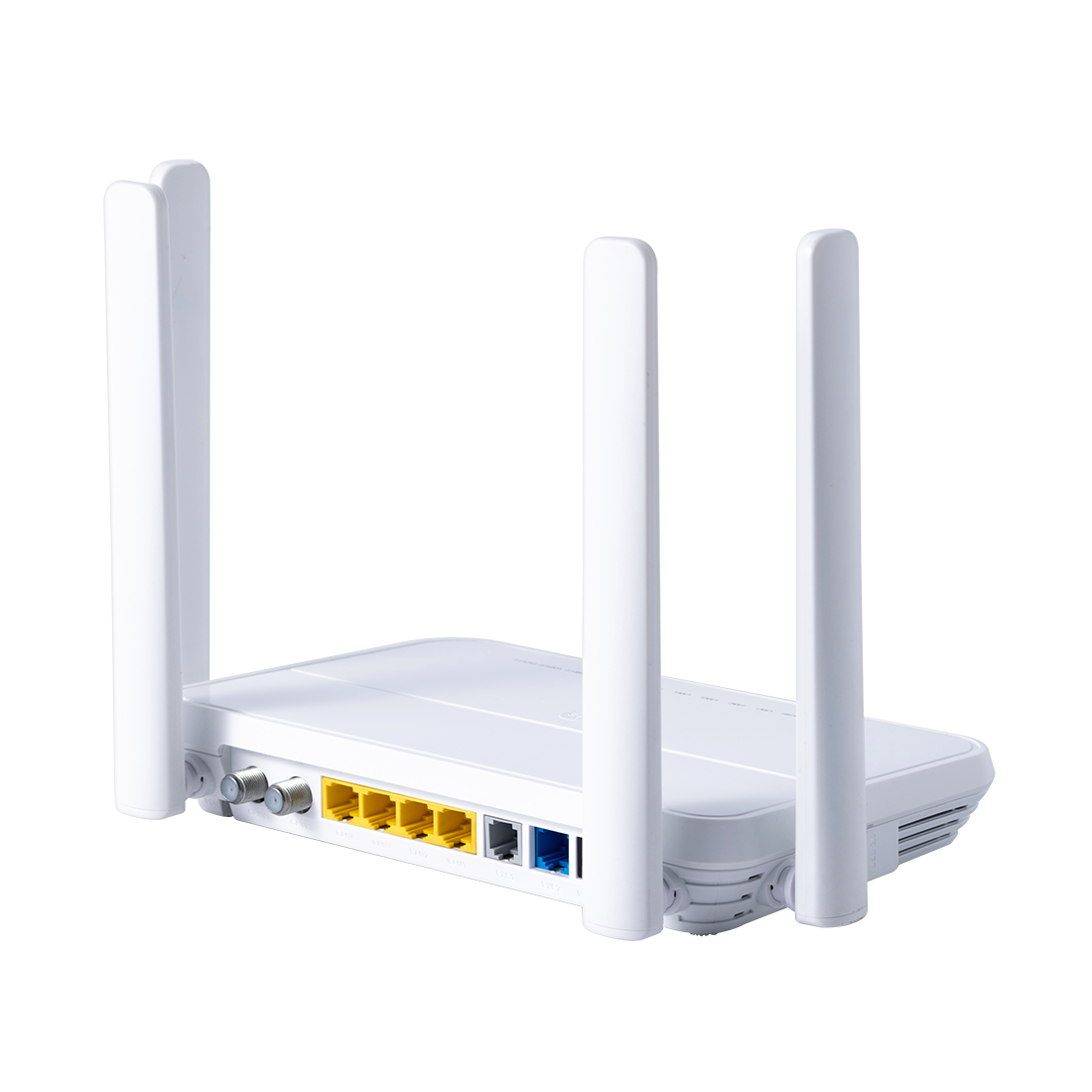

    Product Appearance

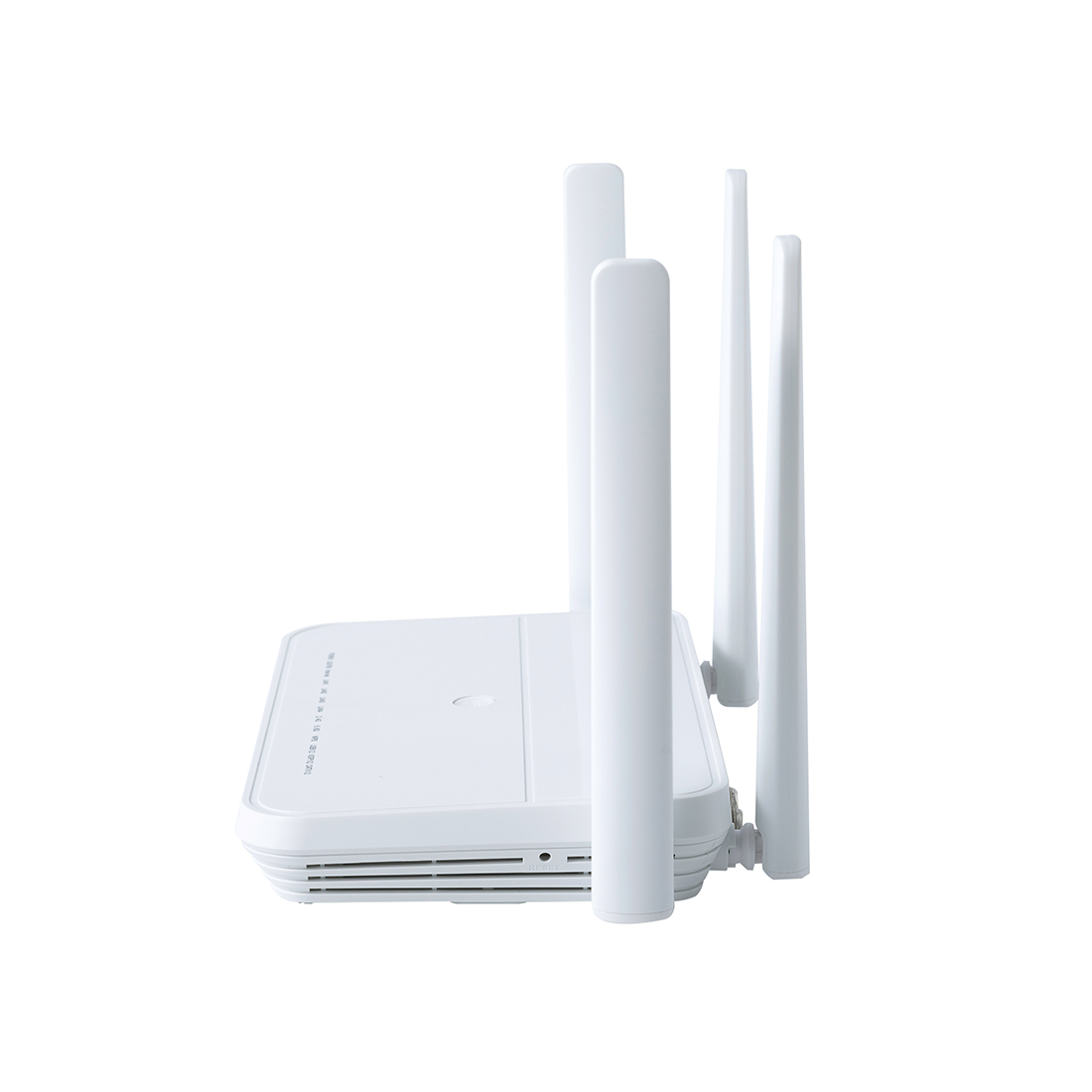

    XGPON_ AX3000 2.5G+4GE+WIFI+2CATV+POTS+2USB ONU CG62152R17C (2)

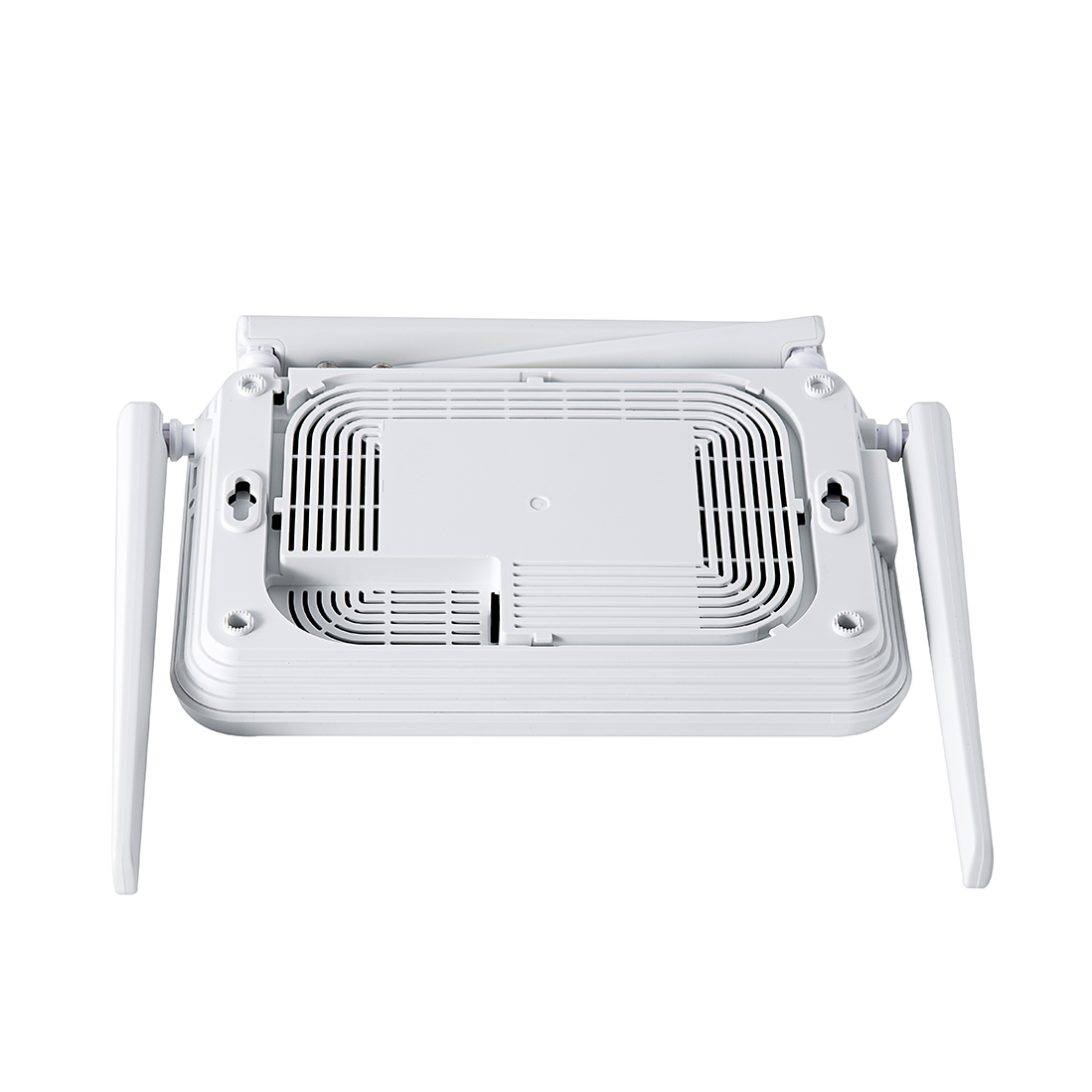

    XGPON_ AX3000 2.5G+4GE+WIFI+2CATV+POTS+2USB ONU CG62152R17C (4)

    Ordering Information

    Product Name

    Product Model





    4*10/100/1000M and 1*10/100/1000/2500M network ports, built-in FWDM, 2 RF interfaces, 2 USB ports, 1 POTS interface, 1 PON interface, supports Wi-Fi function, supports AGC, plastic Shell, external power adapter


    Regular Power Adapter
