XPON 2GE AC WIFI CATV ONU Produce Manufacturing Supplier

Short Description:

XPON ONU 2*gigabit ports dual-band WIFI2.4&5.8G plus CATV, carrier-grade FTTH applications provide data and video service access. CATV with AGC automatic gain and real RF stable output, WIFI with MESH function, supporting whole-house network networking. Compatible with the OMCI private protocol functions of multi-vendor OLTs, which can be delivered and managed through related OLTs. Support illegal ONT detection, support Internet, IPTV, CATV services automatically bind ONT ports and other functions. Our products are guaranteed for 1-3 years from the date of sale, and the software can be upgraded for free for life.


  • Single Size: 230x207x470mm
  • Carton Size: 510x425x475mm
  • Product Model: CX51020R07
  • Product Detail

    Product Tags

    Overview

    ● 2GE+AC WIFI+CATV is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.

    ● 2GE+AC WIFI+CATV is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.

    ● 2GE+AC WIFI+CATV adopts high reliability, easy management, configuration flexibility and good quality of service  guarantees to meet the technical performance of EPON Standard of China telecommunication CTC3.0 and GPON Standard of ITU-TG.984.X

    ● 2GE+AC WIFI+CATV is designed by Realtek chipset 9607C.

    Feature

    XPON 2GE AC WIFI CATV ONU CX51020R07C(3)

    > Supports GPON and EPON auto detection

    > Support Rogue ONT detection

    > Support Route mode PPPOE/DHCP/Static IP and Bridge mixed mode

    > Support NAT, Firewall function.

    > Support Internet, IPTV and CATV services automatically bound to ONT ports

    > Support Virtual server, DMZ, and DDNS, UPNP

    > Support Filtering based on MAC/IP/URL

    > Support 802.11 b/g/n, 802.11ac WIFI(4x4 MIMO) function and Multiple SSID

    > Support Flow & Storm Control , Loop Detection and Port Forwarding

    > Support IPv4/IPv6 dual stack and DS-Lite

    > Support IGMP transparent/snooping/proxy

    > Support TR069 Remote Configuration and maintenance

    > Support CATV remote management from OLT

    > Integrated OAM remote configuration and maintenance function

    > Compatible with popular OLT (HW, ZTE, FiberHome,VSOL...)

    XPON 2GE AC WIFI CATV ONU CX51020R07C(2)

    Specification

    Technical Item

    Details

    PON interface

    1 G/EPON port(EPON PX20+ and GPON Class B+)

    Upstream: 1310nm; Downstream: 1490nm

    SC/APC connector

    Receiving sensitivity: ≤-28dBm

    Transmitting optical power: 0~+4dBm

    Transmission distance: 20KM

    LAN interface

    2 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector

    WIFI Interface

    Compliant with IEEE802.11b/g/n/ac

    2.4GHz Operating frequency: 2.400-2.483GHz

    5.0GHz Operating frequency: 5.150-5.825GHz

    Support 4*4MIMO, 5dBi external antenna, rate up to 867Mbps

    Support: multiple SSID

    TX power: 11n--22dBm/11ac--24dBm

    CATV Interface

    RF, optical power : +2~-15dBm

    Optical reflection loss: ≥60dB

    Optical receiving wavelength: 1550±10nm

    RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

    RF output level: ≥ 80dBuV(-7dBm optical input)

    AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

    MER: ≥32dB(-14dBm optical input), >35(-10dBm)

    LED

    9 LED, For Status of PWR、LOS、PON、LAN1、LAN2、2.4G、5.8G、

    WARN、 Normal(CATV)

    Push-Button

    3 button for Function of Power on/off, Reset, WPS

    Operating condition

    Temperature : 0℃~+50℃

    Humidity :10%~90%(non-condensing)

    Storing Condition

    Temperature : -40℃~+60℃

    Humidity :10%~90%(non-condensing)

    Power supply

    DC 12V/1A

    Power Consumption

    <6W

    Net Weight

    <0.3kg

    Panel lights and Introduction

    Pilot  Lamp

    Status

    Description

    2.4G

    On

    2.4G WIFI up

    Blink

    2.4G WIFI is sending or/and receiving data (ACT).

    Off

    2.4G WIFI down

    5.8G

    On

    5G WIFI up

    Blink

    5G WIFI is sending or/and receiving data (ACT).

    Off

    5G WIFI down

    PWR

    On

    The device is powered up.

    Off

    The device is powered down.

    LOS

    Blink

    The device doses not receive optical signals or with low signals.

    Off

    The device has received optical signal.

    PON

    On

    The device has registered to the PON system.

    Blink

    The device is registering the PON system.

    Off

    The device registration is incorrect.

    LAN1~LAN2

    On

    Port (LANx) is connected properly (LINK).

    Blink

    Port (LANx) is sending or/and receiving data (ACT).

    Off

    Port (LANx) connection exception or not connected.

    WARN

    (CATV)

    On

    Input optical power is higher than 2dBm or lower than -18dBm

    Off

    Input optical power is between -18dBm and 2dBm

    Normal

    (CATV)

    On

    Input optical power is between -18dBm and 2dBm

    Off

    Input optical power is higher than 2dBm or lower than -18dBm

    Schematic diagram

    ● Typical Solution:FTTO(Office)、 FTTB(Building)、FTTH(Home)

    ● Typical Service:Broadband Internet access, IPV, CATV etc.

    asd

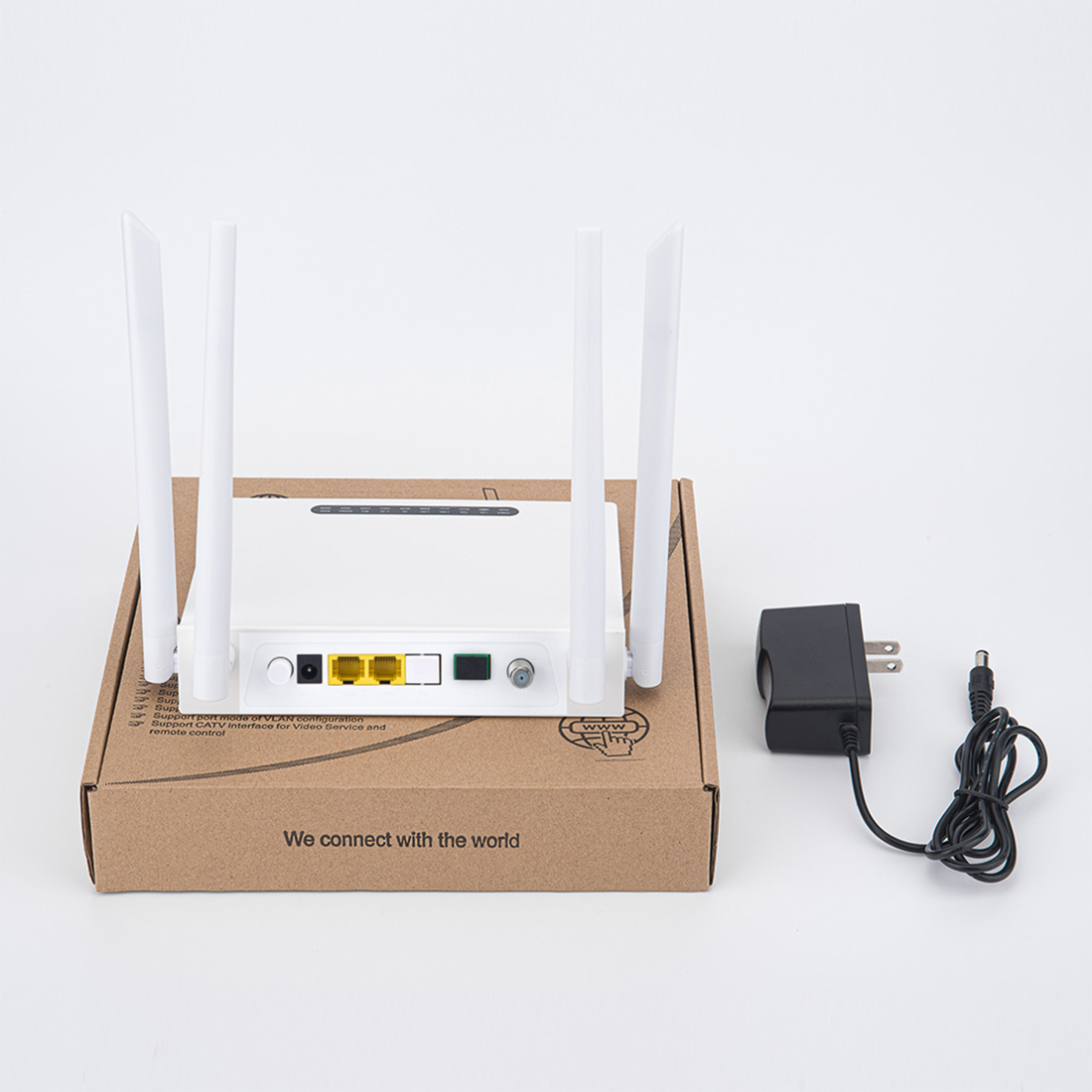

    Product Picture

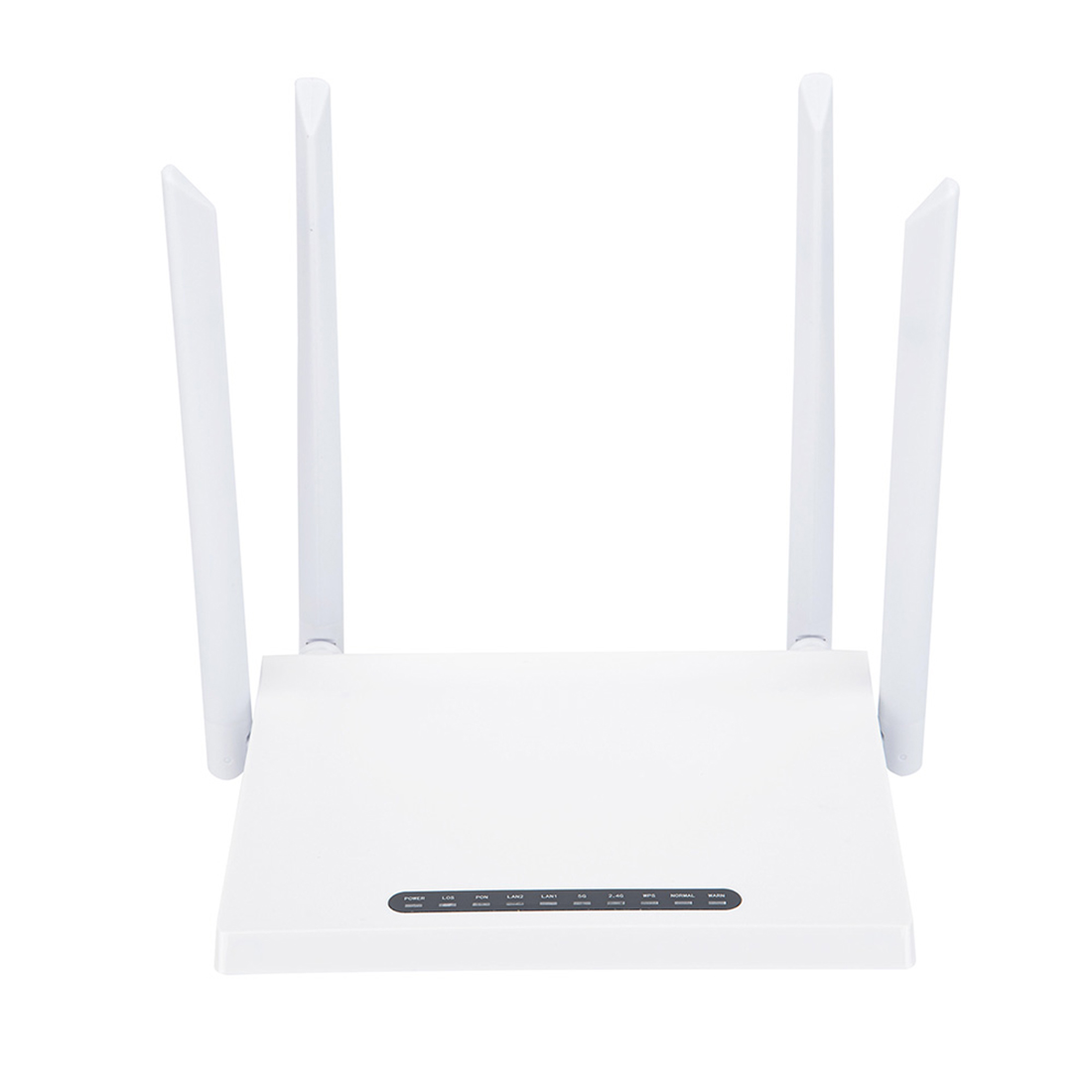

    XPON 2GE AC WIFI CATV ONU CX51020R07C(主图)
    XPON 2GE AC WIFI  CATV ONU CX51020R07C(1)

    Ordering information

    Product Name

    Product Model

    Descriptions

    XPON 2GE AC WIFI CATV ONU



    CX51020R07C

    2*10/100/1000M, 1 PON interface, built-in FWDM, 1 RF interface, support WIFI 5G&2.4G, support CATV AGC, plastic casing, external power supply adapter

    Wireless LAN

    Let's take a look at our firewall, UPnP and RIP, about the firewall part, including IP/port filtering, Mac filtering, port forwarding and where to set up DMZ!

    For IP/Port and Mac filtering configurations, this will help protect or restrict your local network.

    图片 3

    FAQ

    Q1. What are the main features of dual-band WiFi and CATV XPON ONU?
    A: XPON ONU has 2 Gigabit ports for high-speed data transmission.
    - Supports dual-band WiFi function with frequencies of 2.4GHz and 5.8GHz, providing excellent wireless connectivity options.
    - CATV functionality includes AGC Automatic Gain Control and ensures a stable RF output for reliable video service access.
    - ONU also supports MESH function to realize whole-house network networking.

    Q2. Can XPON ONU be used in carrier-grade FTTH applications?
    A: Yes, XPON ONUs are designed for carrier-grade FTTH (Fiber To The Home) applications, providing reliable access to data and video services.

    Q3. Does XPON ONU support multi-vendor OLT?
    A: Yes, XPON ONU is compatible with OMCI proprietary protocol function of multi-vendor OLT, allowing seamless delivery and management by related OLT.

    Q4. What additional functions does XPON ONU provide?
    A: XPON ONU supports illegal ONT detection, which can effectively monitor and prevent unauthorized access.
    - It also supports automatic binding of ONT ports for Internet, IPTV and CATV services, simplifying the configuration and setup process.

    Q5. Does XPON ONU have technical support?
    A: Yes, technical support is available for XPON ONUs. For any questions or assistance with product installation, configuration or troubleshooting, customers can contact the manufacturer's support team.
