WIFI6 AX3000 4GE WIFI CATV 2USB ONU ONT Manufacturer Supplier

Short Description:

WIFI6 AX3000 4G+WIFI+CATV+2USB device is a cutting-edge broadband access solution tailored for fixed network operators seeking to provide FTTH and triple play services. It adopts Realtek chip RTL9607D high-performance chip solution and supports XPON dual-mode technology (EPON and GPON). This provides carrier-grade data services for FTTH applications, combined with OAM/OMCI management for seamless operation. Offers comprehensive Layer 2 and Layer 3 functionality, including support for IEEE802.11b/g/n/ac/ax WiFi 6 technology with 4×4 MIMO. This powerful combination enables maximum speeds of up to 3000Mbps, ensuring ultra-fast connections.

Single Size: mm

Carton Size: mm

Product Model: CX61042R07D

Send email to us

Product Detail

Product Tags

Overview

● 4G+WIFI+CATV+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.

● 4G+WIFI+CATV+2USB is based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.

● 4G+WIFI+CATV+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 3000Mbps.

● 4G+WIFI+CATV+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

● 4G+WIFI+CATV+2USB are designed by Realtek chip RTL9607D.

Product Feature and model list

ONU Model	CX62242R07D	CX61242R07D	CX62142R07D	CX61142R07D
Feature	4G 2CATV 2VOIP 2.4/5GWIFI 2USB	4G 1CATV 2VOIP 2.4/5GWIFI 2USB	4G 2CATV 1VOIP 2.4/5GWIFI 2USB	4G 1CATV 1VOIP 2.4/5GWIFI 2USB
ONU Model	CX62042R07D	CX61042R07D	CX60242R07D	CX60142R07D
Feature	4G 2CATV 2.4/5GWIFI 2USB	4G 1CATV 2.4/5GWIFI 2USB	4G 2VOIP 2.4/5GWIFI 2USB	4G 1VOIP 2.4/5GWIFI 2USB
ONU Model	CX60042R07D
	4G 2.4/5GWIFI 2USB

Feature

XPON 4GE AX3000 CATV 2USB ONU CX61042R07D (4)

> Supports Dual Mode (can access GPON/EPON OLT).

> Comply with GPON G.984/G.988 standard and IEEE802.3ah.

> Support CATV interface for Video Service and remote control by Major OLT

> Support 802.11 b/g/a/n/ac/ax, 802.11ax WIFI6(4x4MIMO) function and Multiple SSID.

> Support NAT, Firewall function.

> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.

> Support power-off alarm function ,easy for link problem detection.

> Support port mode of VLAN configuration.

> Support LAN IP and DHCP Server configuration.

> Support TR069 Remote Configuration and WEB Management.

> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.

> Support IPv4/IPv6 dual stack.

> Support IGMP transparent/snooping/proxy.

> Support ACL and SNMP to configure data packet filter flexibly.

> Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...).

XPON 4GE AX3000 CATV 2USB ONU CX61042R07D (1)

Specification

Technical Item	Details
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm single mode，SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM
LAN interface	4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector
USB Interface	Stamdard USB2.0、Stamdard USB3.0
WIFI Interface	Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 3000Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm
CATV Interface	1xRF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
LED	15 LED,：PWR、LOS\PON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、Normal 1(CATV1)
Push-Button	3, for Function of Power on/off, Reset, WPS
Operating condition	Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing）
Storing Condition	Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing）
Power supply	DC 12V/1.5A
Power Consumption	<18W
Net Weight	<0.4kg

Panel lights and Introduction

Pilot Lamp	Status	Description
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
LOS	Blink	The device doses not receive optical signals or with low signals.
LOS	Off	The device has received optical signal.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LAN1~LAN4	On	Port (LANx) is connected properly (LINK).
	Blink	Port (LANx) is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.
Normal (CATV)	On	Input optical power is between -15dBm and 2dBm
Normal (CATV)	Off	Input optical power is higher than 2dBm or lower than -15dBm

Application

● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)

● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance

Product Appearance

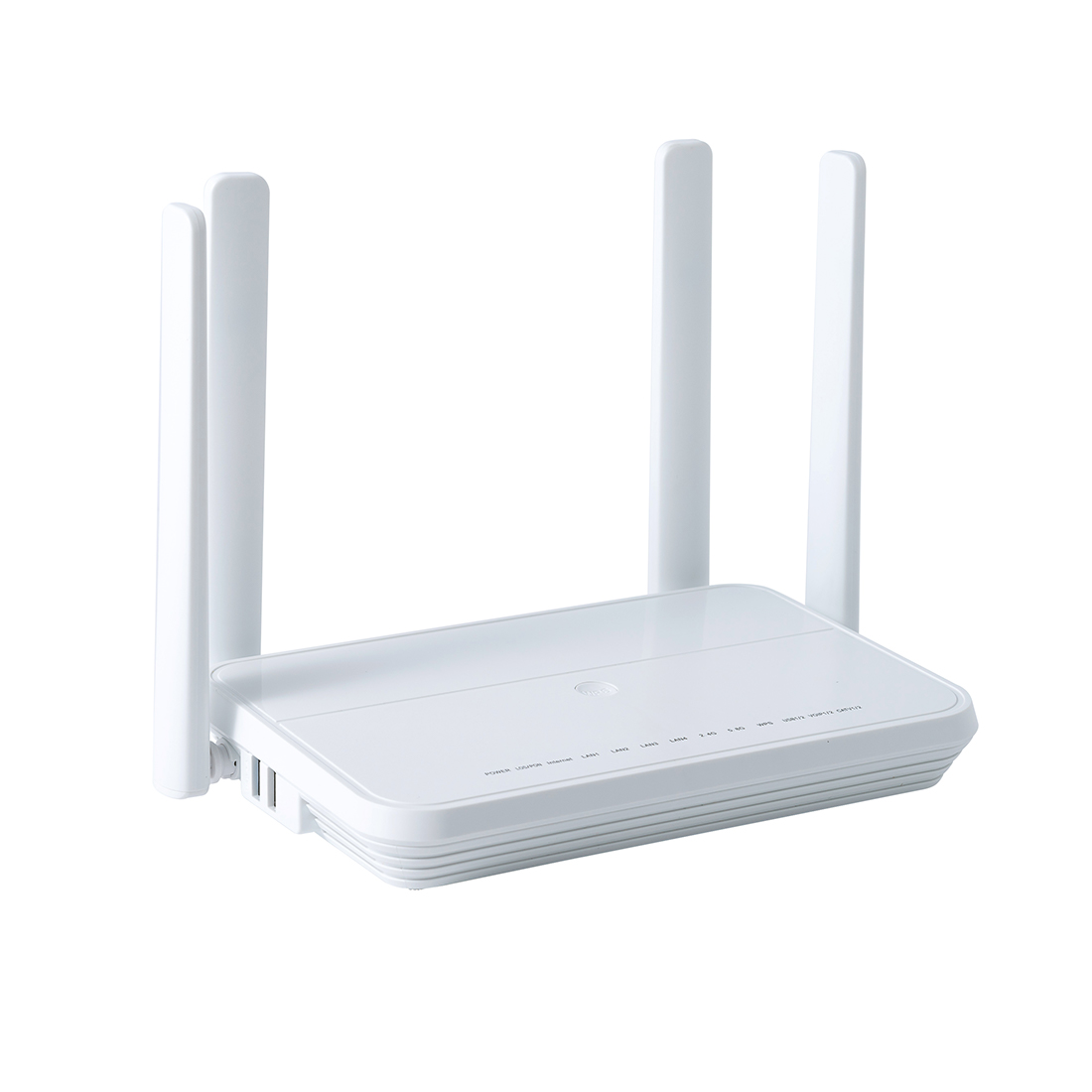

XPON 4GE AX3000 CATV 2USB ONU CX61042R07D （2）

XPON 4GE AX3000 CATV 2USB ONU CX61042R07D （5）

Ordering Information

Product Name	Product Model	Descriptions
AX3000 WIFI6 4GE+WIFI+CATV+2USB ONU	CX61042R07D	4*10/100/1000MNetwork port ;1CATV ports；2 USB ports；external power supply adapter
