WIFI6 AX3000 4GE+WIFI+2CATV+POTs+2USB ONU ONT Supplier

Short Description:

CX62142R07D AX3000 WIFI6 ONU is a smart home product with future technology as the core design. It adopts WIFI6 technology, supports IEEE802.11b/g/n/ac/ax standards, the transmission rate can reach 3000Mbps, supports NAT public network conversion, and Google supports game servers on various platforms. Set up 4 Gigabit network ports to connect user equipment, such as computers, switches, routers, etc. 2 CATV ports are used to connect cable TV and other equipment. 1 POTS port can connect phones and other devices. At home, you can enjoy high-definition movies, fun games, and online learning; in the office, it can provide stable and high-speed network support to help your work go smoothly; in the villa, you can enjoy it in any corner Seamlessly connect to the Internet and enjoy the convenience brought by technology.

Single Size: mm

Carton Size: mm

Product Model: CX62142R07D

Send email to us

Product Detail

Product Tags

Overview

●4G+WIFI+2CATV+POTs+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.

●4G+WIFI+2CATV+POTs+2USBis based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.

● 4G+WIFI+2CATV+POTs+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 3000Mbps.

●4G+WIFI+2CATV+POTs+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

● 4G+WIFI+2CATV+POTs+2USB are designed by Realtek chip RTL9607D.

Product Feature and model list

ONU Model	CX62242Z28S	CX61242Z28S	CX62142Z28S	CX61142Z28S
Feature	4G2CATV 2VOIP 2.4/5GWIFI 2USB	4G1CATV 2VOIP 2.4/5GWIFI 2USB	4G2CATV 1VOIP 2.4/5GWIFI 2USB	4G1CATV 1VOIP 2.4/5GWIFI 2USB
ONU Model	CX62042Z28S	CX61042Z28S	CX60242Z28S	CX60142Z28S
Feature	4G2CATV 2.4/5GWIFI 2USB	4G1CATV 2.4/5GWIFI 2USB	4G2VOIP 2.4/5GWIFI 2USB	4G1VOIP 2.4/5GWIFI 2USB
ONU Model	CX60042Z28S
	4G2.4/5GWIFI 2USB

Feature

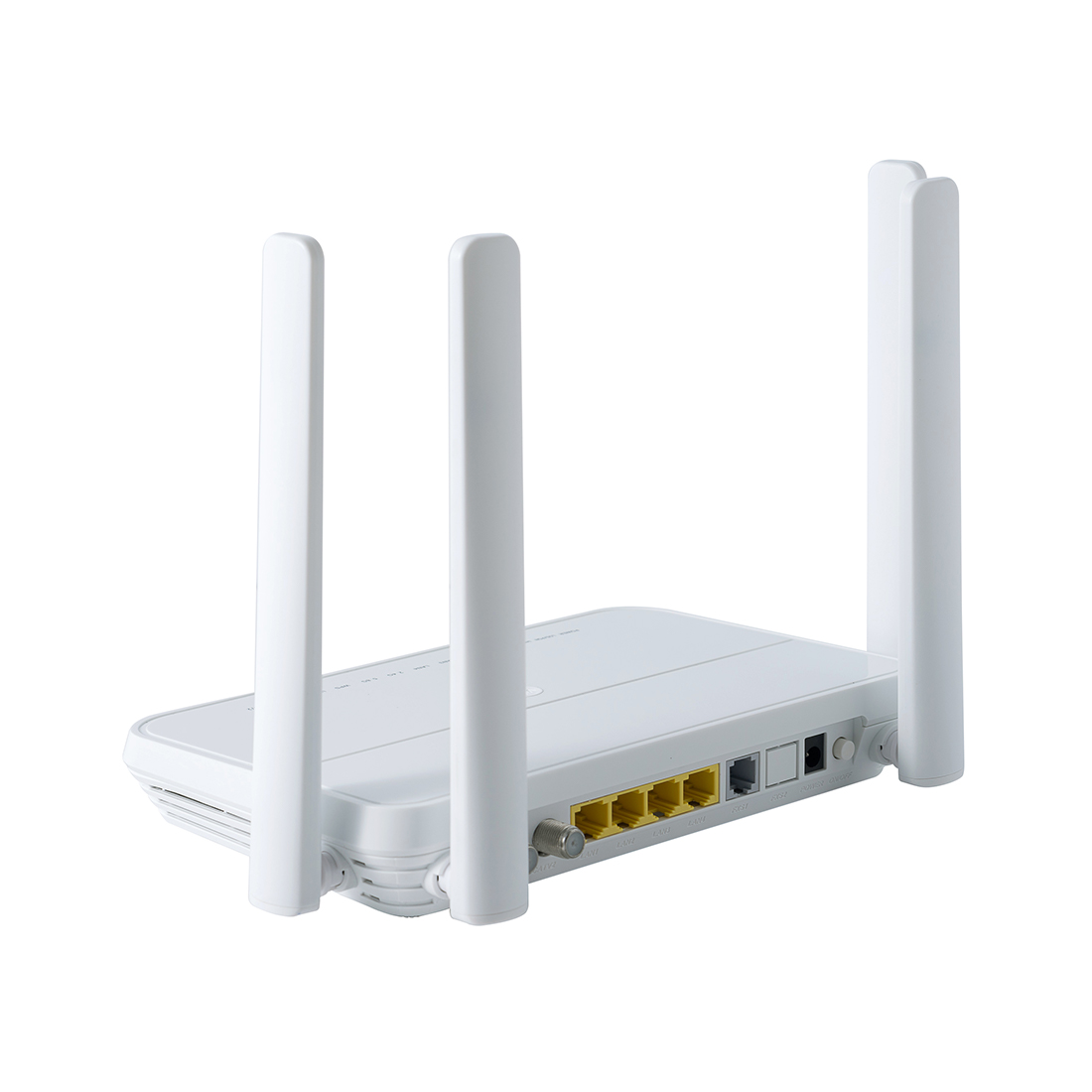

XPON 4GE AX3000 2CATV POTS 2USB ONU CX62142R07D（1）

> Supports Dual Mode (can access GPON/EPON OLT).

> Comply with GPON G.984/G.988 standard and IEEE802.3ah.

> Support CATV interface for Video Service and remote control by Major OLT

> Support SIP Protocol for VoIP Service

> Integrated line testing compliant with GR-909 on POTS

> Support 802.11 b/g/a/n/ac/ax, 802.11ax WIFI6(4x4MIMO) function and Multiple SSID

> Support NAT, Firewall function.

> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect

> Support power-off alarm function ,easy for link problem detection.

> Support port mode of VLAN configuration.

> Support LAN IP and DHCP Server configuration.

> Support TR069 Remote Configuration and WEB Management.

> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.

> Support IPv4/IPv6 dual stack.

> Support IGMP transparent/snooping/proxy.

> Support ACL and SNMP to configure data packet filter flexibly.

> Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...).

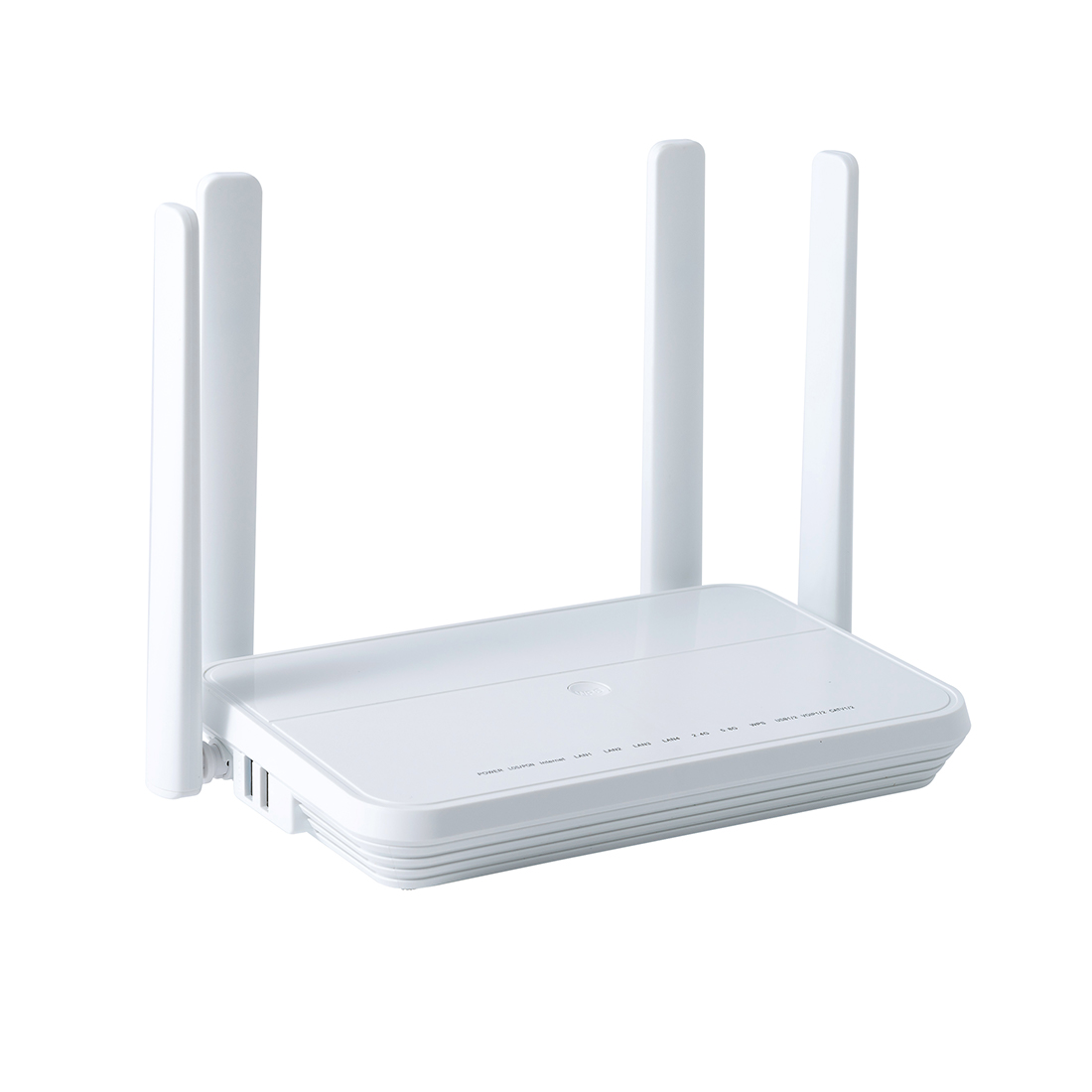

XPON 4GE AX3000 2CATV POTS 2USB ONU CX62142R07D（2）

Specification

Technical Item	Details
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm single mode，SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM
LAN interface	4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector
USB Interface	Stamdard USB2.0、Stamdard USB3.0
WIFI Interface	Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 3000Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm
CATV Interface	2xRF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
POTS Port	1×POTS RJ11 Connector
LED	16 LED,：PWR、LOSPON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、 FXS、Normal 1(CATV1)/Normal 2(CATV2)
Push-Button	3, for Function of Power on/off, Reset, WPS
Operating condition	Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing）
Storing Condition	Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing）
Power supply	DC 12V/1.5A
Power Consumption	<18W
Net Weight	<0.4kg

Panel lights and Introduction

Pilot Lamp	Status	Description
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
LOS	Blink	The device doses not receive optical signals or with low signals.
LOS	Off	The device has received optical signal.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LAN1~LAN4	On	Port (LANx) is connected properly (LINK).
	Blink	Port (LANx) is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.
FXS	On	Telephone has registered to the SIP Server.
	Blink	Telephone has registered and data transmission (ACT).
	Off	Telephone registration is incorrect.
Normal (CATV)	On	Input optical power is between -15dBm and 2dBm
Normal (CATV)	Off	Input optical power is higher than 2dBm or lower than -15dBm

Application

● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)

● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP

Product Appearance

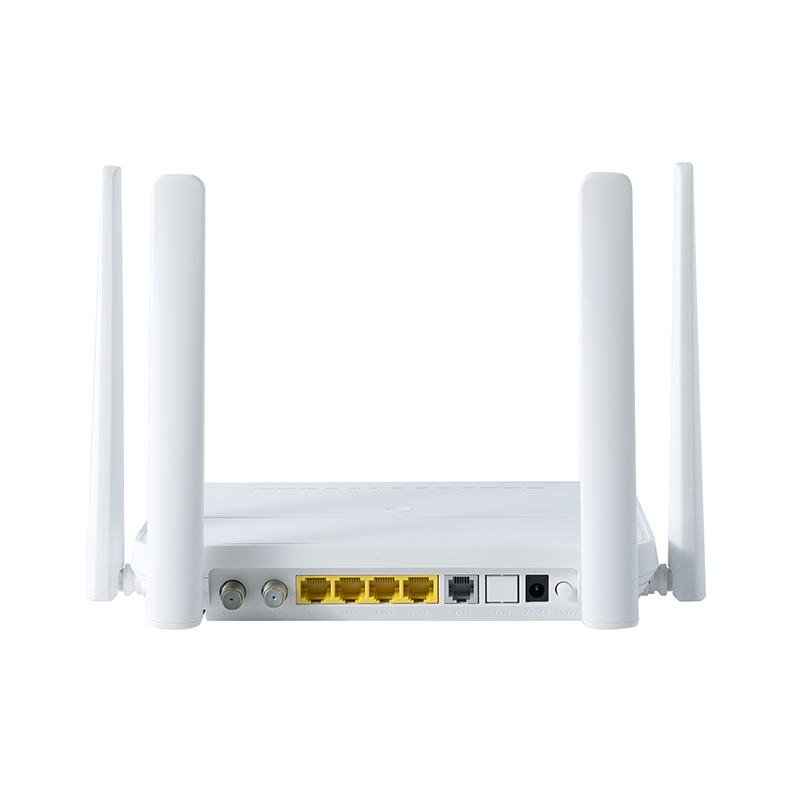

XPON 4GE AX3000 2CATV POTS 2USB ONU CX62142R07D（主图）

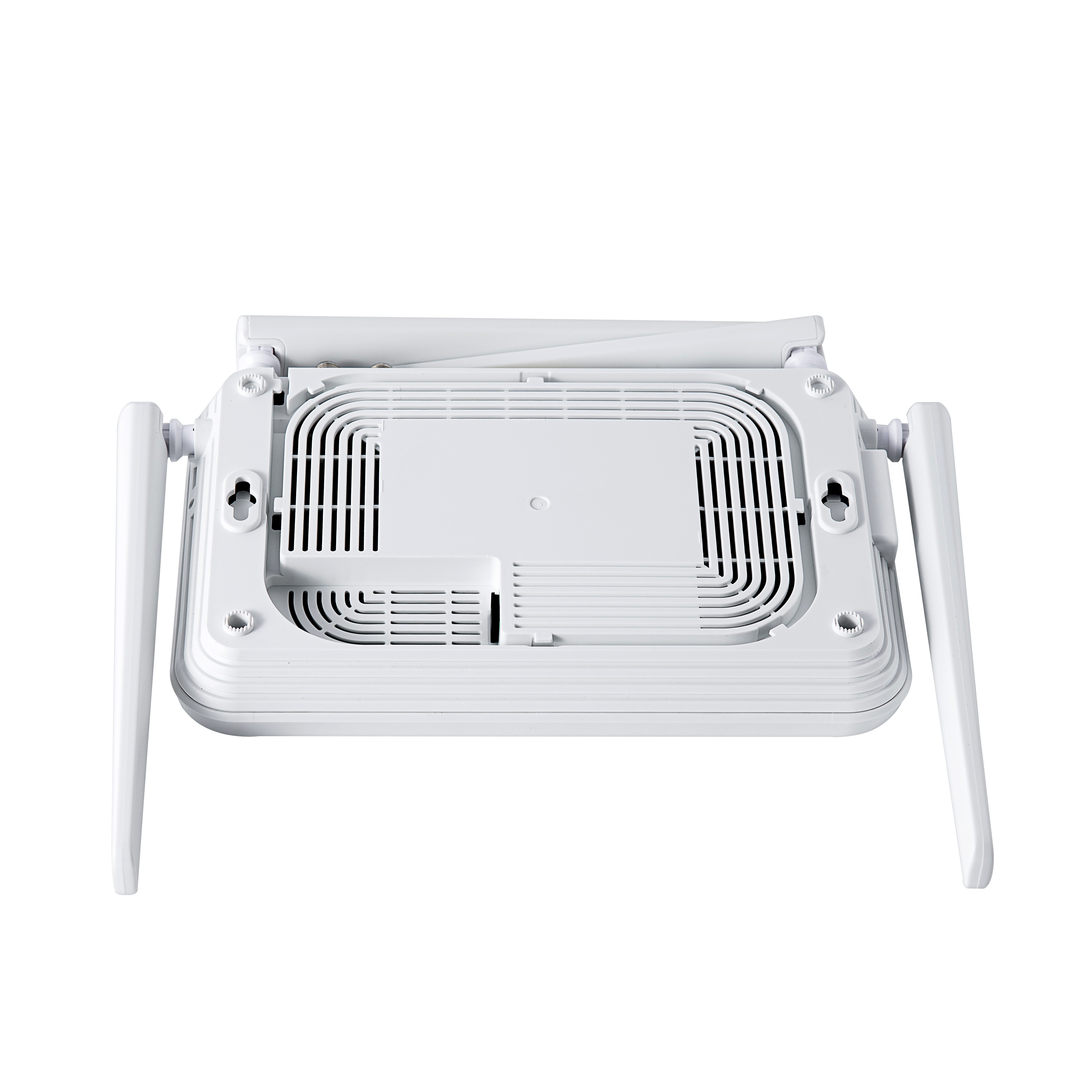

XPON 4GE AX3000 2CATV POTS 2USB ONU CX62142R07D（6）

Ordering Information

Product Name	Product Model	Descriptions
AX3000 WIFI6 4GE+WIFI+2CATV+POTs+2USB ONU	CX62142R07D	4*10/100/1000MNetwork port ;2 CATA ports；1 POTS ports；2 USB ports；external power supply adapter

Regular Power Adapter

FAQ

Q1. What are the main features of AX3000 WIFI6 4GE+WIFI+2CATV+1POTs+2USB ONU?

- AX3000 WIFI6 4GE+WIFI+2CATV+1POTs+2USB ONU is equipped with 4 Gigabit ports.
- Support dual-band WiFi2.4/5.8GHz.
- Support EPON and GPON access.
- ONU can automatically identify the central office OLT mode (EPON or GPON).
- Adaptive EPON or GPON access capability.

-The maximum transmission rate can reach 3000Mbps.

Q2. Which standards and technical specifications does the AX3000 WIFI6 4GE+WIFI+2CATV+1POTs+2USB ONU comply with?

- The equipment functions and performance indicators comply with the relevant recommendations of ITU-T and IEEE.
- Comply with relevant international standards and industry technical specifications.
- Compatible with mainstream OLT (local terminal) and other functions.

Q3. What is the purpose of the web management function of AX3000 WIFI6 4GE+WIFI+2CATV+1POTs+2USB ONU?
- Web management function allows users to configure and monitor AX3000 WIFI6 4GE+WIFI+2CATV+1POTs+2USB ONU through a web-based interface.
- It provides a user-friendly interface to manage ONU settings and performance.

Q4. Can AX3000 WIFI6 4GE+WIFI+2CATV+1POTs+2USB ONU be used with other types of OLT?
- Yes,AX3000 WIFI6 4GE+WIFI+2CATV+1POTs+2USB ONU is compatible with mainstream OLT and other functions.
- It can be used with various OLTs, as long as it meets the relevant standards and technical specifications.

Q5. Can AX3000 WIFI6 4GE+WIFI+2CATV+1POTs+2USB ONU support multiple devices and users?
- Yes, the 4 Gigabit ports of AX3000 WIFI6 4GE+WIFI+2CATV+1POTs+2USB ONU allow multiple devices to be connected.
- It can support multiple users at the same time, providing high-speed Internet access and connectivity.
