XPON 1GE ONU Custom Produce Manufacturing Supplier

Short Description:

XPON ONU supports dual modes, and can automatically switch between EPON or GPON mode when connected to EPON OLT or GPON OLT. XPON ONU meets the SFU and HGU of China Telecom EPON CTC 3.0 standard. support XPON environment, OMCI control, OAM, multi-brand OLT management, TR069, TR369, TR098、NAT, firewall functions. And it has the characteristics of high reliability, convenient management, flexible configuration, quality of service (Qos) new network environment application and smart home furniture gateway. The products sold by our company are guaranteed for 1-3 years from the date of sale, and the software can be upgraded for free for life.

  • Single Size: 115x115x70mm
  • Carton Size: 610x485x225mm
  • Product Model: CX00010R01D
  • Product Detail

    Product Tags


    ● 1GE ONU is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.

    ● 1GE ONU is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.

    ●1GE ONU adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.

    ● 1GE ONU is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

    ● 1GE ONU is designed by Realtek chipset 9601D


    XPON 1GE ONU CX00010R01D(3)

    > Supports Dual Mode (can access GPON/EPON OLT).

    > Supports SFU and HGU of EPON CTC 3.0 standard

    > Supports GPON G.984/G.988 standards and IEEE802.3ah.

    > Support NAT, Firewall function.

    > Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect

    > Support port mode of vlan configuration

    > Support LAN IP and DHCP Server configuration

    > Support TR069 Remote Configuration and maintenance

    > Support Route PPPOE/DHCP/Static IP and Bridge mixed mode

    > Support IPv4/IPv6 dual stack

    > Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy

    > Compatible with popular OLT(HW, ZTE, FiberHome,)

    XPON 1GE ONU CX00010R01D(3)


    Technical Item


    PON interface

    1 GPON/EPON port(EPON PX20+ and GPON Class B+)

    Upstream: 1310nm,Downstream: 1490nm

    SC/UPC connector

    Receiving sensitivity: ≤-28dBm

    Transmitting optical power: 0~+4dBm

    Transmission distance: 20KM

    LAN interface

    10/100/1000Mbps auto adaptive Ethernet interfaces.

    10/100/1000M Full/Half, RJ45 connector


    4 LED, For Status of POWERLOSPONLAN


    2, for Function of Power on/off, Reset

    Operating condition

    Temperature : 0℃+50℃

    Humidity :10%90%non-condensing

    Storing Condition

    Temperature : -40+60

    Humidity :10%90%non-condensing

    Power supply

    DC 12V/1A

    Power Consumption


    Net Weight


    Panel lights and Introduction

    Pilot Status Description


    On The device is powered up.
    Off The device is powered down.


    Blink The device doses not receive optical signals.
    Off The device has received optical signal.


    On The device has registered to the PON system.
    Blink The device is registering the PON system.
    Off The device registration is incorrect.


    On Port is connected properly (LINK).
    Blink Port is sending or/and receiving data (ACT).
    Off Port connection exception or not connected.

    Schematic diagram

    ● Typical Solution:FTTO(Office)、 FTTB(Building)、FTTH(Home)

    ● Typical Service:Broadband Internet access, IPTV, VOD(video on demand), video surveillance,  etc.


    Product Picture

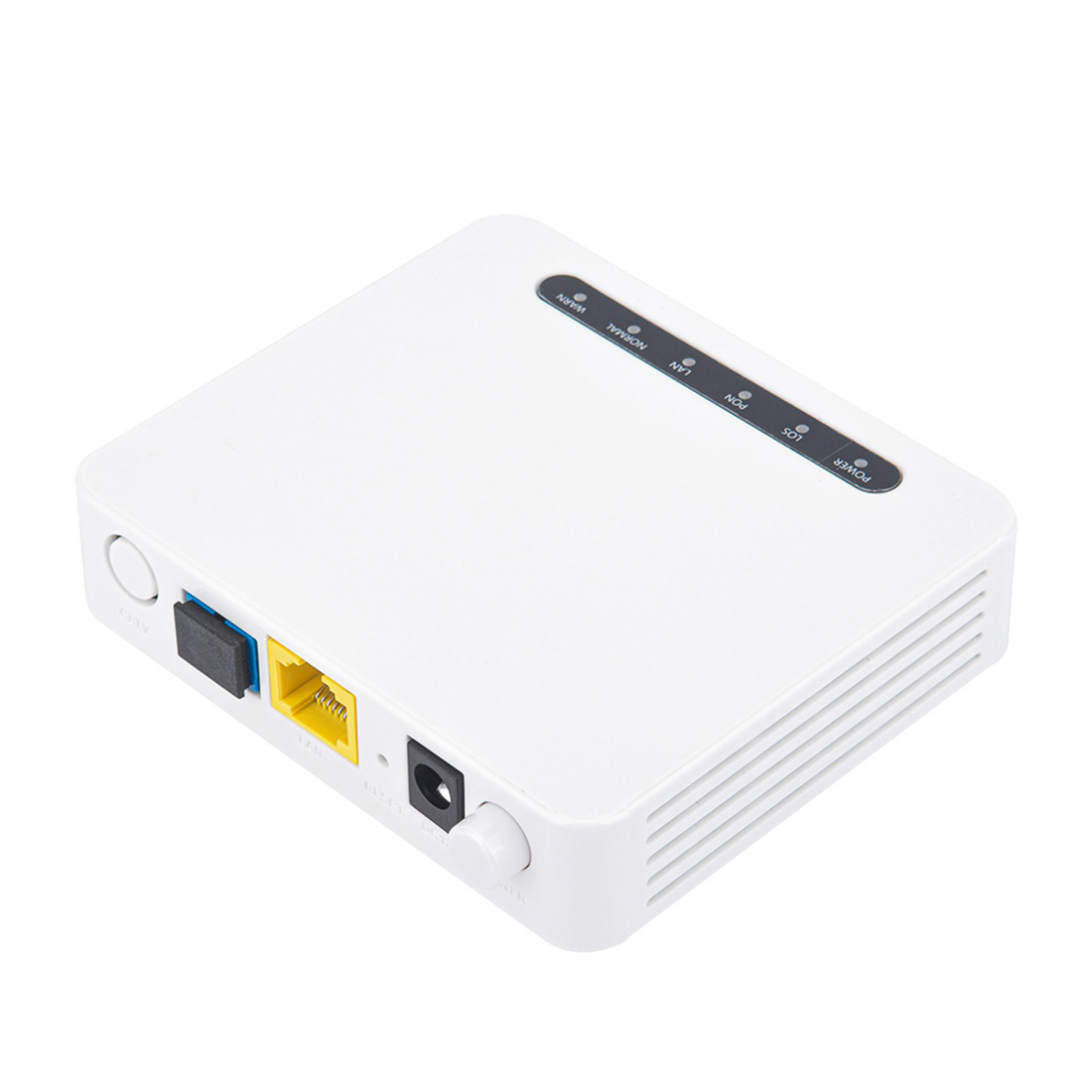

    XPON 1GE ONU CX00010R01D(主图)

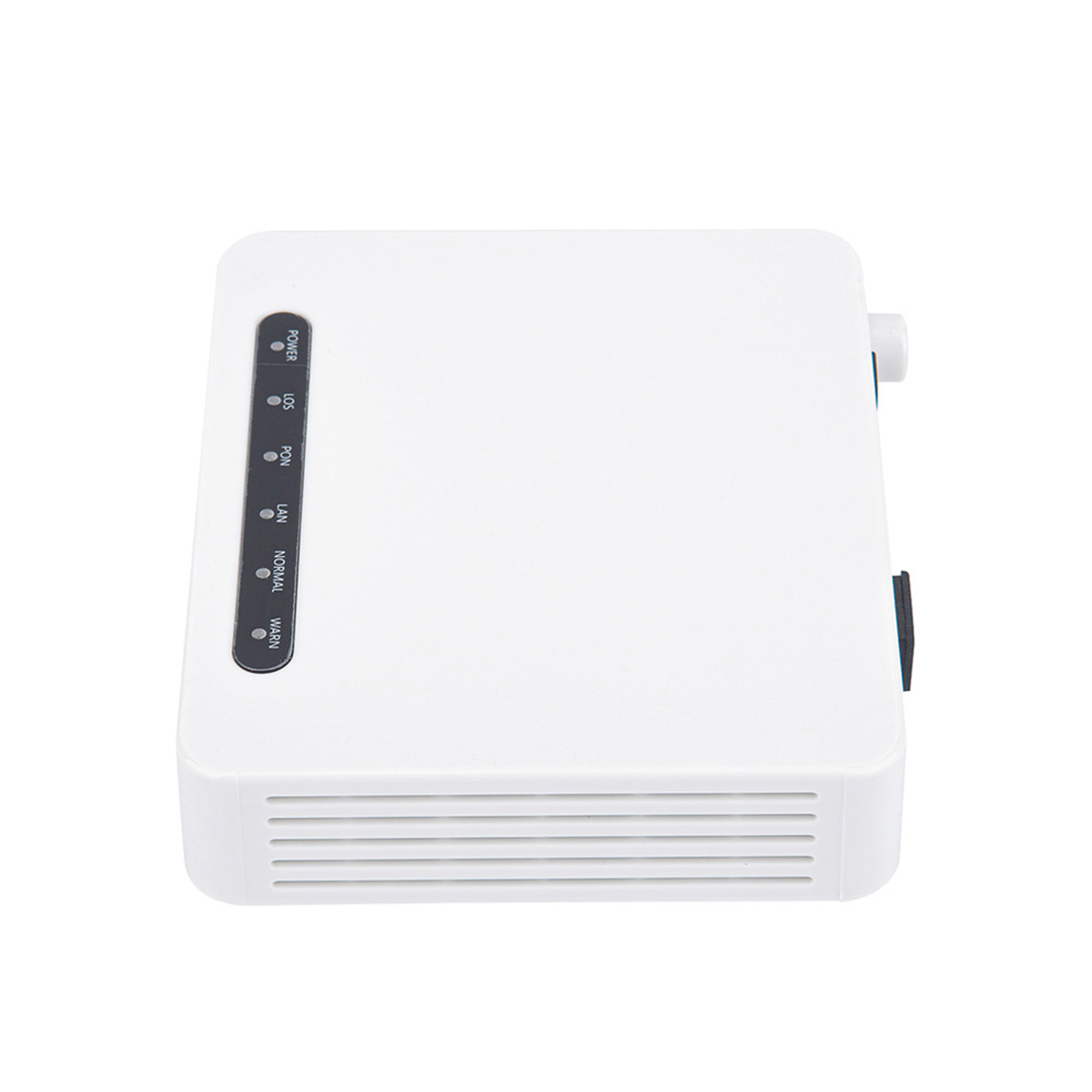

    XPON 1GE ONU CX00010R01D(1)


    Q1. Can XPON ONU support EPON and GPON modes at the same time?
    A: Yes, XPON ONU can automatically switch between EPON or GPON mode when connected to EPON OLT or GPON OLT.

    Q2. Does XPON ONU comply with China Telecom EPON CTC 3.0 standard?
    A: Yes, XPON ONU meets the SFU and HGU requirements of China Telecom EPON CTC 3.0 standard.

    Q3. What additional functions does XPON ONU support?
    A: XPON ONU supports a variety of functions, including XGSPON environment, OMCI control, OAM, multi-brand OLT management, TR069, TR369, TR098, NAT, firewall functions.

    Q4. What are the characteristics of XPON ONU?
    A: XPON ONU is famous for its high reliability, convenient management, flexible configuration and quality of service (QoS), suitable for new network environment applications and smart homes.

    Q5. Can XPON ONU be used in smart home environment?
    A: Yes, XPON ONU is suitable for smart home applications, providing functions such as quality of service (QoS) and support for smart home furniture.
