CT-1001C( 47~ 1050MHz) FTTH CATV O/E Converter Customized Manufacturing
Features
▶No power supply required, no power consumption
▶45~1050MHz working bandwidth
▶Output level=68dBμV (Pin=-1dBm)
Applications
▶CATV FTTH
▶TRIPLE PLAY
▶FTTH PON
Technical Indicators
|
Performance |
Index |
Replenish |
||
|
Opticalpro Perties
|
CATV Working wavelength
|
(nm)
|
1260~1620 |
CT1001C |
|
1540~1563 |
CT1001C/WF |
|||
|
Channel Isolation |
(dB) |
≥40 |
1550nm &1490nm |
|
|
Responsiveness
|
(A/W)
|
≥0.85 |
1310nm |
|
|
≥0.9 |
1550nm |
|||
|
Received optical power range |
(dB) |
-14 ~+2 |
Digital Television(MER>29dB) |
|
|
Optical reflection loss |
(dB) |
≥55 |
|
|
|
Fiber Optic Link
|
|
SC/APC |
CT1001C-SA |
|
|
LC/APC |
CT1001C-FA |
|||
|
Digita lTV link Charact Eristics
|
Working Bandwidth |
(MHz) |
45~1050 |
|
|
Output Level |
(dBμV) |
>68 |
Digital Television(Pin =-1dBm) |
|
|
Return Loss |
(dB) |
≥14 |
47 ~ 862MHz |
|
|
Output Impedance |
(Ω) |
75 |
|
|
|
Number of output ports |
|
1 |
||
|
RF Connector |
|
|||
| Digita lTV link Charact Eristics
|
OMI |
(%) |
4.3 |
|
|
MER
|
(dB)
|
≥38 |
Pin:+1~-6dBm |
|
|
≥30 |
Pin=-13.0dBm |
|||
|
BER |
(dB) |
<1.0E-9 |
Pin :+2.0~-14dBm |
|
|
General characteristics
|
Operating Temperature |
(℃) |
-20 ~ +55 |
|
|
Storage Temperature |
(℃) |
-40 ~ 85 |
|
|
|
Working Relative Humid ity |
(%) |
5 ~ 95 |
|
|
|
SIZE(W)×(D)×(H) |
(mm) |
23×53× 12 |
A type UPC/APC |
|
Digital TV Test Data
Test Channel ：155MHz
|
Pin (dBm)
|
Vo （dBm）
|
MER
|
BER |
Pin (dBm）
|
Vo (dBm)
|
MER
|
BER |
||
|
POST |
PRE |
POST |
PRE |
||||||
|
+2.0 |
77.2 |
39.0 |
<1.0E-9 |
<1.0E-9 |
+2.0 |
71.2 |
38.5 |
<1.0E-9 |
<1.0E-9 |
|
+1.0 |
75.5 |
38.9 |
<1.0E-9 |
<1.0E-9 |
+1.0 |
69.7 |
39.0 |
<1.0E-9 |
<1.0E-9 |
|
+0.0 |
73.7 |
38.8 |
<1.0E-9 |
<1.0E-9 |
+0.0 |
68.5 |
39.0 |
<1.0E-9 |
<1.0E-9 |
|
-1.0 |
71.8 |
38.9 |
<1.0E-9 |
<1.0E-9 |
-1.0 |
67.7 |
38.7 |
<1.0E-9 |
<1.0E-9 |
|
-2.0 |
69.7 |
38.9 |
<1.0E-9 |
<1.0E-9 |
-2.0 |
66.2 |
38.8 |
<1.0E-9 |
<1.0E-9 |
|
-3.0 |
67.7 |
38.9 |
<1.0E-9 |
<1.0E-9 |
-3.0 |
64.3 |
38.9 |
<1.0E-9 |
<1.0E-9 |
|
-4.0 |
65.8 |
38.9 |
<1.0E-9 |
<1.0E-9 |
-4.0 |
62.2 |
38.7 |
<1.0E-9 |
<1.0E-9 |
|
-5.0 |
63.4 |
38.9 |
<1.0E-9 |
<1.0E-9 |
-5.0 |
60.5 |
38.3 |
<1.0E-9 |
<1.0E-9 |
|
-6.0 |
61.3 |
38.3 |
<1.0E-9 |
<1.0E-9 |
-6.0 |
58.6 |
38.2 |
<1.0E-9 |
<1.0E-9 |
|
-7.0 |
59.0 |
38.1 |
<1.0E-9 |
<1.0E-9 |
-7.0 |
57.5 |
37.5 |
<1.0E-9 |
<1.0E-9 |
|
-8.0 |
57.8 |
37.8 |
<1.0E-9 |
<1.0E-9 |
-8.0 |
55.5 |
37.2 |
<1.0E-9 |
<1.0E-9 |
|
-9.0 |
55.6 |
37.3 |
<1.0E-9 |
<1.0E-9 |
-9.0 |
53.2 |
36.0 |
<1.0E-9 |
<1.0E-9 |
|
-10.0 |
53.5 |
36.1 |
<1.0E-9 |
<1.0E-9 |
-10.0 |
51.2 |
35.0 |
<1.0E-9 |
<1.0E-9 |
|
-11.0 |
51.5 |
35.2 |
<1.0E-9 |
<1.0E-9 |
-11.0 |
49.2 |
34.9 |
<1.0E-9 |
<1.0E-9 |
|
-12.0 |
49.3 |
35.4 |
<1.0E-9 |
<1.0E-9 |
-12.0 |
47.4 |
33.1 |
<1.0E-9 |
<1.0E-9 |
|
-13.0 |
47.2 |
33.8 |
<1.0E-9 |
<1.0E-9 |
-13.0 |
45.4 |
31.1 |
<1.0E-9 |
<1.0E-9 |
|
-14.0 |
45.6 |
32.0 |
<1.0E-9 |
<1.0E-9 |
-14.0 |
43.5 |
29.0 |
<1.0E-9 |
<1.0E-9 |
|
-15.0 |
43.9 |
30.0 |
<1.0E-9 |
<1.0E-9 |
|
|
|
|
|
|
-16.0 |
41.9 |
28.0 |
<1.0E-9 |
<1.0E-9 |
|
|
|
|
|
Product Series
|
Model |
Input Wavelength |
CATV Working wavelength |
Pass wavelength |
The optical fiber connector |
|
CT1001C/NC-SA |
1310 OR1550nm |
1260~1620nm |
- |
SC/APC |
|
CT1001C/WF-SA |
1310, 1490 / 1550nm |
1540~1563nm |
- |
SC/APC |
|
CT1001C/NC-FA |
1310 OR1550nm |
1260~1620nm |
- |
FC/APC |
|
CT1001C/WF-FA |
1310, 1490 / 1550nm |
1540~1563nm |
- |
FC/APC |

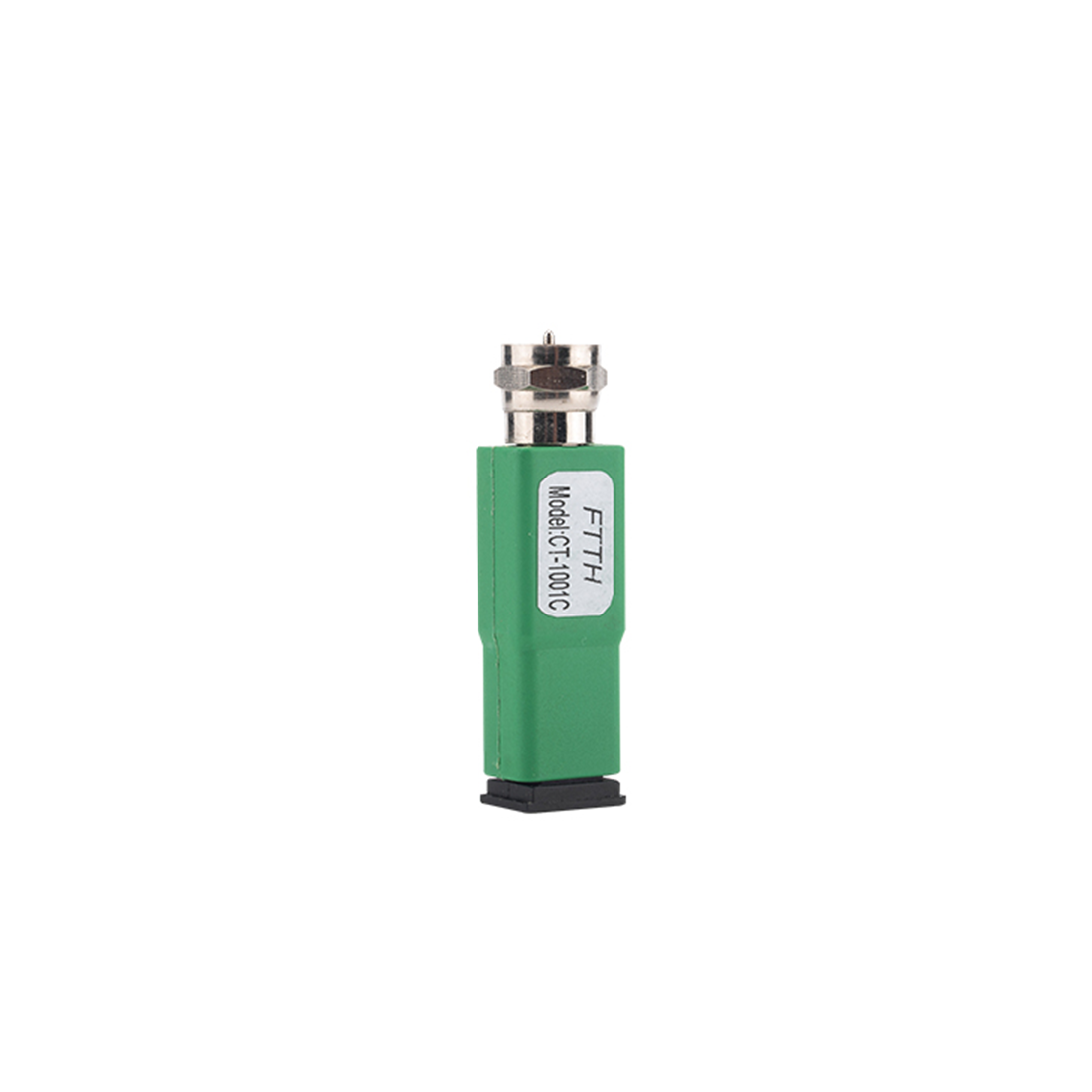

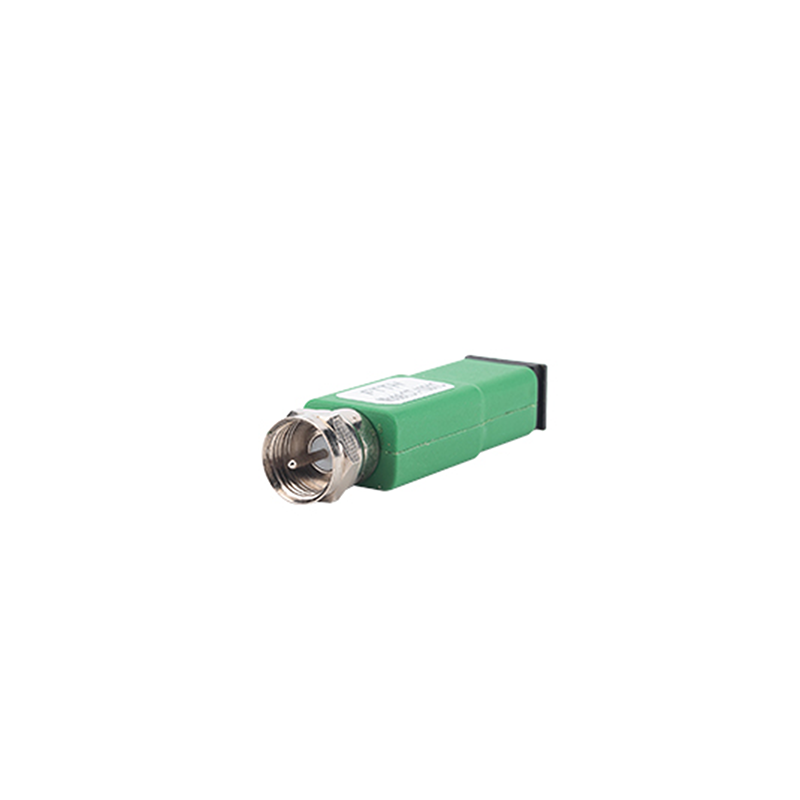

Product Picture
