WIFI6 AX3000 4GE+WIFI+2CATV+2POTs+2USB ONU

Short Description:

WIFI6 AX3000 CX62242Z28S adopts the latest network technology to provide network transmission speeds of Gigabit and above. Whether you are studying, working online, or watching high-definition videos, WIFI6 AX3000 ONU CX62242Z28S can ensure the smoothness and stability of the network, allowing you to worry-free. Afraid of lagging. Equipped with 4 Gigabit Ethernet interfaces for connecting user equipment, such as computers, switches, routers, etc. It is equipped with 2*CATV and 2*POTS. The home has multiple TVs and traditional analog voice equipment such as telephones and fax machines. One ONU can connect multiple devices. WIFI6 AX3000 supports XPON dual mode (EPON or GPON); supports HGU or SFU mode, and HGU mode can be used as a router when turned on; supports Web interface upgrade, online upgrade, and multicast upgrade; supports firewall L1, L2, and L3 levels…..




  • Single Size: mm
  • Carton Size: mm
  • Product Model: CX62242Z28S
  • Product Detail

    Product Tags

    Overview

    ●4G+WIFI+2CATV+2POTs+2USB is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.

    ●4G+WIFI+2CATV+2POTs+2USBis based on a high-performance chip solution, supports XPON dual-mode technology (EPON and GPON), provides carrier-grade FTTH application data services, and supports OAM/OMCI management.

    ● 4G+WIFI+2CATV+2POTs+2USB supports layer 2/layer 3 functions such as IEEE802.11b/g/n/ac/ax WiFi 6 technology, using 4x4 MIMO, with a maximum rate of up to 3000Mbps.

    ●4G+WIFI+2CATV+2POTs+2USB are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

    ●  4G+WIFI+2CATV+2POTs+2USB are designed by ZTE chip set ZX279128S.



    Product Feature and model list

    ONU Model CX62242Z28S CX61242Z28S CX62142Z28S CX61142Z28S




    Feature

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 2CATV

    4ae38081b769ce65dfc69838b7c168a 2VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 1CATV

    4ae38081b769ce65dfc69838b7c168a 2VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 2CATV

    4ae38081b769ce65dfc69838b7c168a 1VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 1CATV

    4ae38081b769ce65dfc69838b7c168a 1VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    ONU Model CX62042Z28S CX61042Z28S CX60242Z28S  CX60142Z28S




    Feature

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 2CATV

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 1CATV

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 2VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 1VOIP

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB

    ONU Model CX60042Z28S
      4ae38081b769ce65dfc69838b7c168a 4G

    4ae38081b769ce65dfc69838b7c168a 2.4/5GWIFI

    4ae38081b769ce65dfc69838b7c168a 2USB



    Feature



     > Supports Dual Mode (can access GPON/EPON OLT).

    > Comply with GPON G.984/G.988 standard and IEEE802.3ah.

    > Support CATV interface for Video Service and remote control by Major OLT

    > Support SIP Protocol for VoIP Service

    > Integrated line testing compliant with GR-909 on POTS

    > Support 802.11 b/g/a/n/ac/ax, 802.11ax WIFI6(4x4MIMO) function and Multiple SSID

    > Support NAT, Firewall function.

    > Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect



     Support power-off alarm function ,easy for link problem detection

    Support port mode of VLAN configuration

    Support LAN IP and DHCP Server configuration

    Support TR069 Remote Configuration and WEB Management

    Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode

    Support IPv4/IPv6 dual stack

    Support IGMP transparent/snooping/proxy

    Support ACL and SNMP to configure data packet filter flexibly

    Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...)



    Specification

    Technical Item

    Details

    PON interface

    1 G/EPON port(EPON PX20+ and GPON Class B+)

    Upstream: 1310nm; Downstream: 1490nm

    single mode,SC/APC connector

    Receiving sensitivity: ≤-28dBm

    Transmitting optical power: 0~+4dBm

    Overload optical power: -3dBm(EPON) or - 8dBm(GPON)

    Transmission distance: 20KM

    LAN interface

    4 x 10/100/1000Mbps auto adaptive Ethernet interfaces

    Full/Half, RJ45 connector

    USB Interface

    Stamdard USB2.0、Stamdard USB3.0

    WIFI Interface

    Compliant with IEEE802.11b/g/n/ac/ax

    2.4GHz Operating frequency: 2.400-2.483GHz

    5.0GHz Operating frequency: 5.150-5.825GHz

    Support 4*4MIMO, 5dBi external antenna, rate up to 3000Mbps

    Support: multiple SSID

    TX power: 11n--22dBm/11ac--24dBm

    CATV Interface

    2xRF, optical power : +2~-15dBm

    Optical reflection loss: ≥45dB

    Optical receiving wavelength: 1550±10nm

    RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

    RF output level: ≥ 80dBuV(-7dBm optical input)

    AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

    MER: ≥32dB(-14dBm optical input), >35(-10dBm)

    POTS Port

    2×POTS RJ11 Connector

    LED

    17 LED,:PWR、LOS\PON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、 FXS1/FXS2、Normal 1(CATV1)/Normal  2(CATV2)

    Push-Button

    3, for Function of Power on/off, Reset, WPS

    Operating condition

    Temperature : 0℃~+50℃

    Humidity :10%~90%(non-condensing)

    Storing Condition

    Temperature : -40℃~+60℃

    Humidity :10%~90%(non-condensing)

    Power supply

    DC 12V/1.5A

    Power Consumption

    <18W

    Net Weight

    <0.4kg

    Panel lights and Introduction

    Pilot  Lamp

    Status

    Description

    WIFI

    On

    The WIFI interface is up.

    Blink

    The WIFI interface is sending or/and receiving data (ACT).

    Off

    The WIFI interface is down.

    WPS

    Blink

    The WIFI interface is securely establishing a connection.

    Off The WIFI interface does not establish a secure connection.

    PWR

    On The device is powered up.
    Off The device is powered down.

    LOS

    Blink The device doses not receive optical signals or with low signals.
    Off The device has received optical signal.

    PON

    On The device has registered to the PON system.
    Blink The device is registering the PON system.
    Off The device registration is incorrect.

    LAN1~LAN4

    On Port (LANx) is connected properly (LINK).
    Blink Port (LANx) is sending or/and receiving data (ACT).
    Off Port (LANx) connection exception or not connected.

    FXS

    On Telephone has registered to the SIP Server.
    Blink Telephone has registered and data transmission (ACT).
    Off Telephone registration is incorrect.

    Normal

    (CATV)

    On Input optical power is between -15dBm and 2dBm
    Off Input optical power is higher than 2dBm or lower than -15dBm

    Application

    ● Typical Solution:FTTO(Office)、 FTTB(Building)、FTTH(Home)

    ● Typical Service:Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP







    444fb48e3ee310de5f9118e20912e90

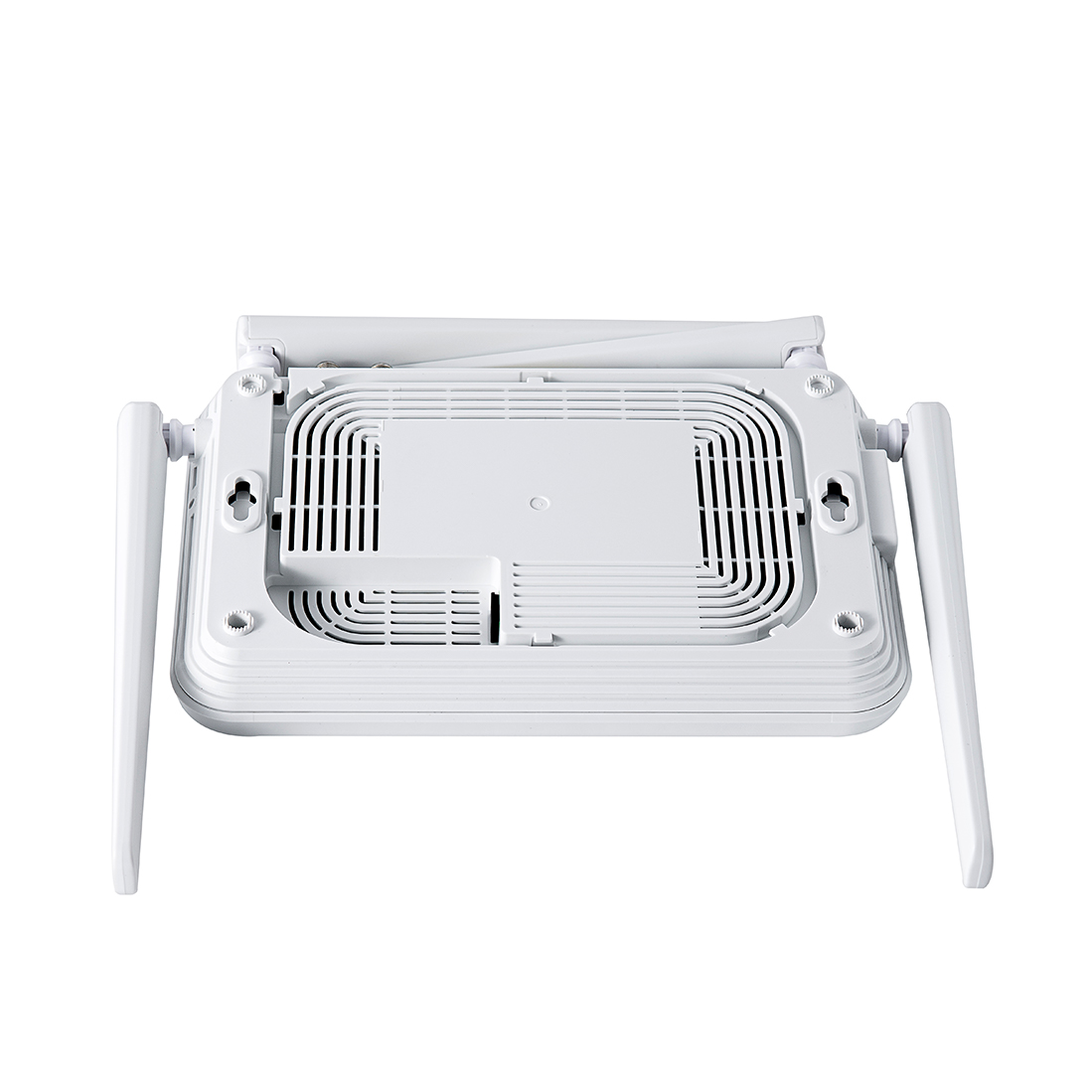

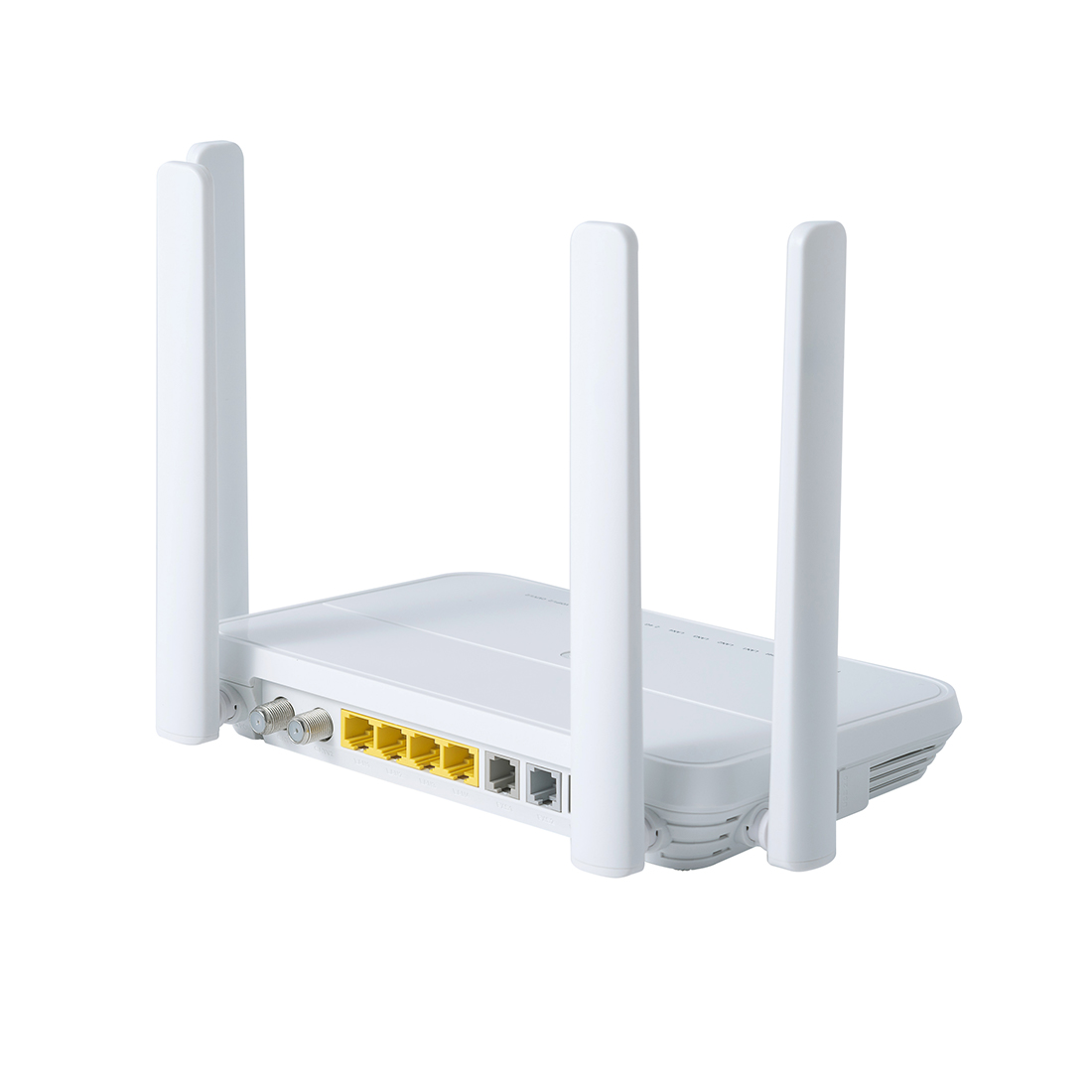

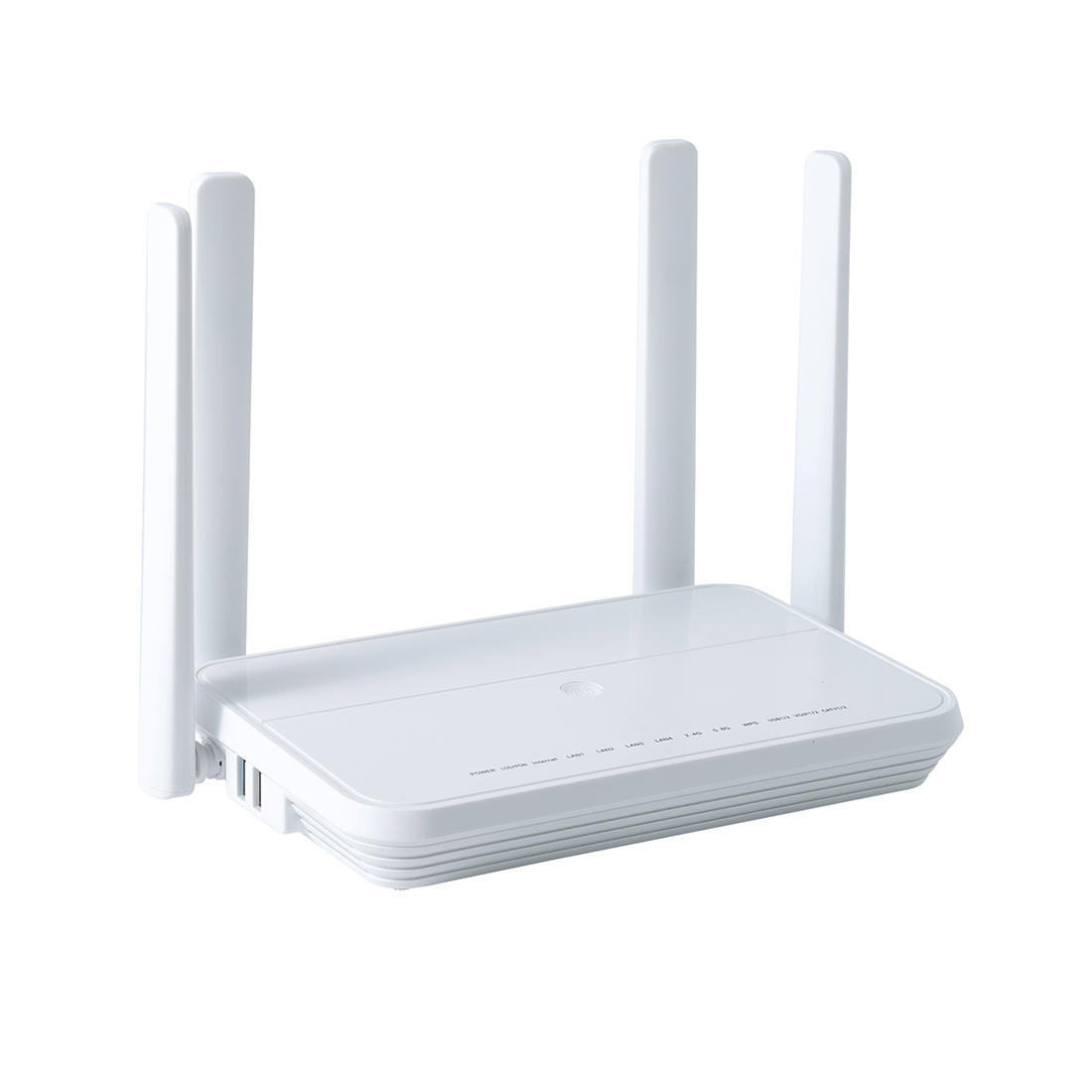

    Product Appearance

    Ordering Information

    Product Name

    Product Model

    Descriptions

     AX3000 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU

    CX62242Z28S

    4*10/100/1000MNetwork port ;2 CATV ports;2 POTS ports;2 USB ports;external power supply adapter



    FAQ

    Q1. What are the main features of AX3000 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU?

    - AX3000 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU is equipped with 4 Gigabit ports.
    - Support dual-band WiFi2.4/5.8GHz.
    - Support EPON and GPON access.
    - ONU can automatically identify the central office OLT mode (EPON or GPON).
    - Adaptive EPON or GPON access capability.

    -The maximum transmission rate can reach 3000Mbps.

     Q2. Which standards and technical specifications does the AX3000 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU comply with?

    - The equipment functions and performance indicators comply with the relevant recommendations of ITU-T and IEEE.
    - Comply with relevant international standards and industry technical specifications.
    - Compatible with mainstream OLT (local terminal) and other functions.

    Q3. What is the purpose of the web management function of AX3000 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU?
    - Web management function allows users to configure and monitor AX3000 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU through a web-based interface.
    - It provides a user-friendly interface to manage ONU settings and performance.

    Q4. Can AX3000 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU be used with other types of OLT?
    - Yes,AX3000 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU is compatible with mainstream OLT and other functions.
    - It can be used with various OLTs, as long as it meets the relevant standards and technical specifications.

    Q5. Can AX3000 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU support multiple devices and users?
    - Yes, the 4 Gigabit ports of AX3000 WIFI6 4GE+WIFI+2CATV+2POTs+2USB ONU allow multiple devices to be connected.
    - It can support multiple users at the same time, providing high-speed Internet access and connectivity.
