Overview
● 1G1F+WIFI+USB ONU 设计为不同FTTH解决方案中的HGU（家庭网关单元）；电信级FTTH ONU应用提供数据业务接入。
● 1G1F+WIFI+USB ONU基于成熟稳定、高性价比的XPON技术，当接入EPON OLT或者GPON OLT时，可实现EPON、GPON模式自动切换。
● 1G1F+WIFI+USB ONU采用高可靠性、易管理、配置灵活、具有良好的服务质量（QoS）保证，满足中国电信EPON CTC3.0模块的技术性能。
● 1G1F+WIFI+USB ONU符合IEEE802.11n STD标准，采用2x2 MIMO，最高速率可达300Mbps。
● 1G1F+WIFI+USB ONU完全符合ITU-T G.984.x、IEEE802.3ah等技术规范。
● 1G1F+WIFI+USB ONU 采用Realtek 芯片组9603C 设计。
Product Feature and model list
|
ONU Model |
CX21121R03C |
CX21021R03C |
CX20121R03C |
CX20021R03C |
|
Feature |
1G1F CATV VOIP 2.4G USB |
1G1F CATV 2.4G USB |
1G1F VOIP 2.4G USB |
1G1F 2.4G USB |
|
ONU Model |
CX21120R03C |
CX21020R03C |
CX20120R03C |
CX20020R03C |
|
Feature |
1G1F CATV VOIP 2.4G |
1G1F CATV 2.4G |
1G1F VOIP 2.4G
|
1G1F 2.4/5G
|
Feature
> Supports Dual Mode (can access GPON/EPON OLT).
> Supports GPON G.984/G.988 standards and IEEE802.3ah.
> Support 802.11 b/g/n,WIFI (2X2 MIMO function, encryption method: WAP-PSK (TKIP)/ WAP2-PSK (AES) and multiple SSIDs.
> Support NAT and firewall functions, Mac filters based on Mac or URL, ACL.
> Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
> Support port mode of VLAN configuration.
> Support LAN IP and DHCP Server configuration.
> Support TR069 Remote Configuration and WEB Management.
> Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.
> Support IPv4/IPv6 dual stack.
> Support IGMP transparent/snooping/proxy.
> Support PON and routing compatibility function.
> Support VPN function.
> In compliant with IEEE802.3ah standard.
> Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)
> Supports OAM/OMCI management.
Specification
|
Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+5dBm Overload optical power: -3dBm(EPON) or - 8dBm(GPON) Transmission distance: 20KM |
|
LAN interface |
1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
USB Interface |
Stamdard USB2.0 |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps Support: multiple SSID TX power: 16--21dBm |
|
LED |
6 LED, For Status of WIFI、WPS、PWR、LOS/PON、LAN1~LAN2、 |
|
Push-Button |
3. For power on/off, reset, WPS function |
|
Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
|
Storing Condition |
Temperature : -10℃～+70℃ Humidity :10%～90%（non-condensing） |
|
Power supply |
DC 12V/1A |
|
Power Consumption |
<12W |
|
Net Weight |
<0.4kg |
|
Product size |
155mm×115mm×32.5mm(L×W×H) |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
|
Off |
The WIFI interface does not establish a secure connection. |
|
PWR |
On |
The device is powered up. |
|
|
Off |
The device is powered down. |
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
|
Off |
The device has received optical signal. |
|
PON |
On |
The device has registered to the PON system. |
|
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
LAN1~LAN2 |
On |
Port (LANx) is connected properly (LINK). |
|
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
Schematic diagram
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Service：Broadband Internet access, IPTV, VOD, video surveillance etc.

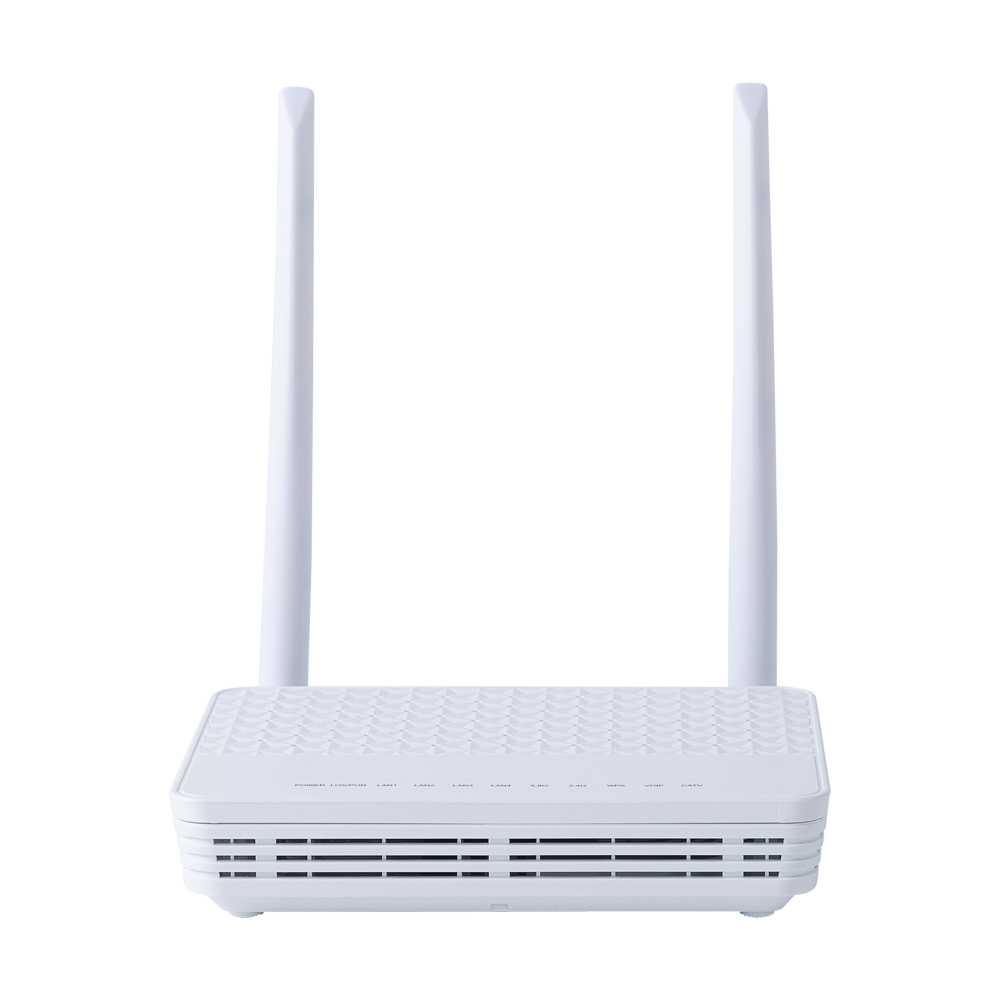

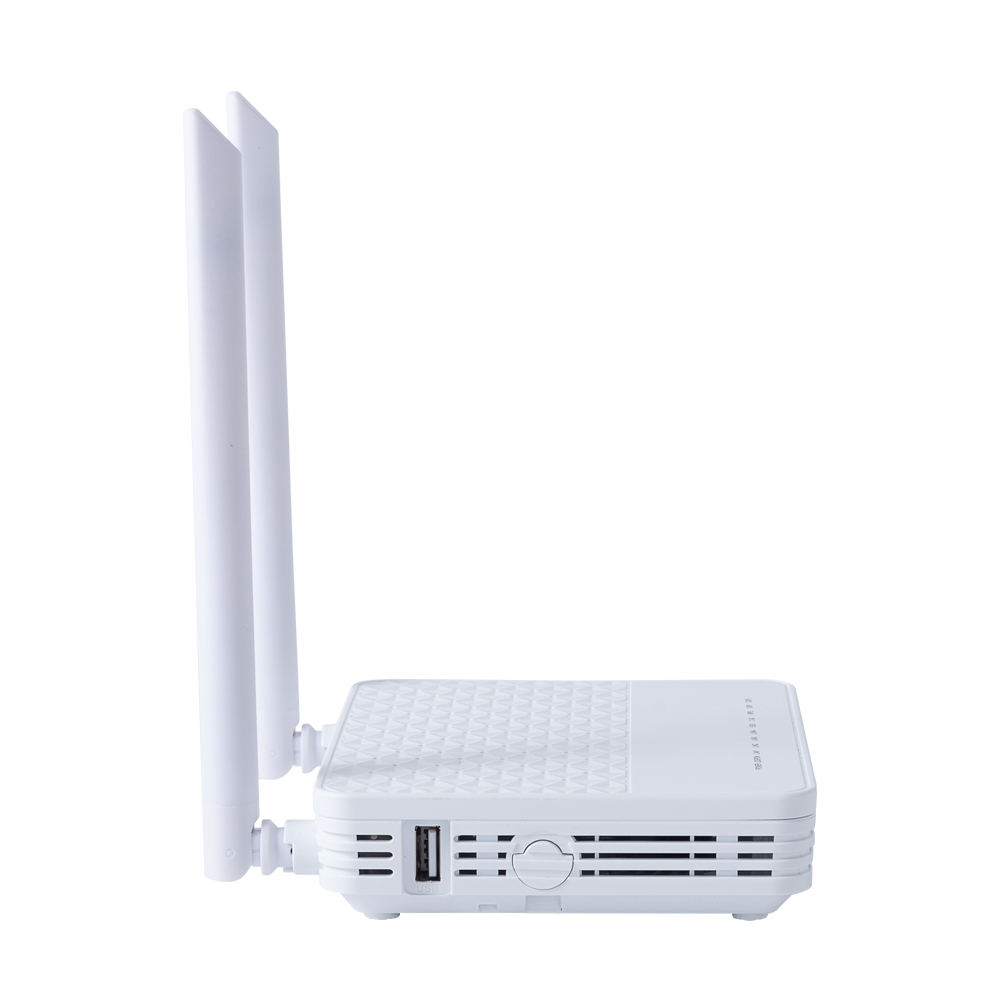

Product Picture
Ordering information
|
产品名称 |
产品型号 |
描述 |
|
XPON 1G1F WIFI USB ONU |
CX20021R03C |
1x10/100/1000Mbps和1x10/100Mbps 以太网接口，USB接口，1个PON接口，支持Wi-Fi功能，塑料外壳，外置电源适配器 |
